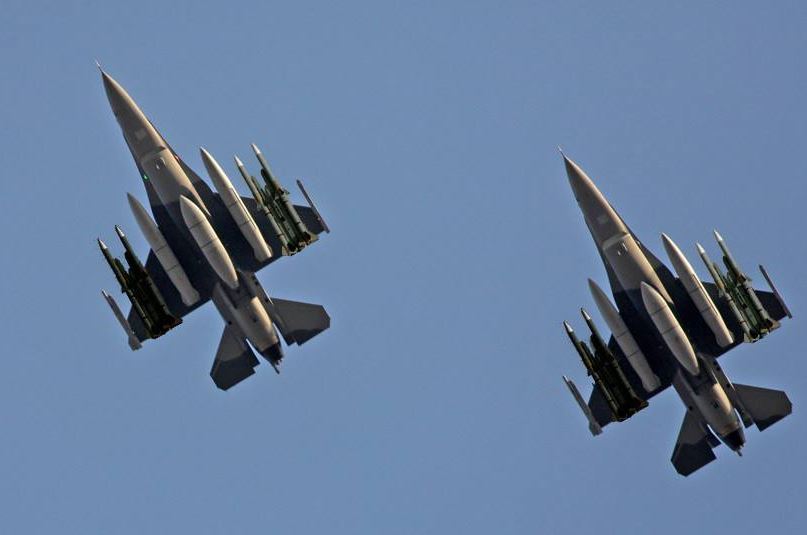

f16 twin rack.JPG

Tps77 · Feb 24, 2018

Beauty.

Tps77 · Feb 24, 2018

Btw This Pic is most probably from Arrows 11 sqn OCU.

Signalian · Feb 25, 2018

Increased range with no affect on payload .

Khafee · Feb 25, 2018

Arslan said:
Increased range with no affect on payload .

How does a twin rack missile launcher, increase range?

Signalian · Feb 26, 2018

I confused it with hardpoints of JF-17. The wet points on F-16 remain the same. This config helps JF-17 more than F-16.
In case of F-16 it can only help in more payload.

Khafee · Feb 26, 2018

Arslan said:
I confused it with hardpoints of JF-17. The wet points on F-16 remain the same. This config helps JF-17 more than F-16.
In case of F-16 it can only help in more payload.

My initial reaction was, maybe you were referring to the Conformal Fuel Tanks, on the F16 they increase range by approx 40%, without sacrificing any hard points.

WuraidKhan · Sep 18, 2019

@Khafee Sir can PAF also add Two AMRAAMs on Wingtip? Or not possible due to Max Take off Weight Limitations or Others if any??

Khafee · Sep 18, 2019

WuraidKhan said:
@Khafee Sir can PAF also add Two AMRAAMs on Wingtip? Or not possible due to Max Take off Weight Limitations or Others if any??

TBH I havent seen twin racks on wing tips, most probably due to weight restriction.

WuraidKhan · Sep 18, 2019

Khafee said:
TBH I havent seen twin racks on wing tips, most probably due to weight restriction.

Sir I Basically asked One more AMRAAM on Wingtip (that mean total 6-AMRAAMs on each Aircraft). Is it possible or it will increase MTOW of the Aircraft with Six AMRAAMs?

Khafee · Sep 18, 2019

WuraidKhan said:
Sir I Basically asked One more AMRAAM on Wingtip (that mean total 6-AMRAAMs on each Aircraft). Is it possible or it will increase MTOW of the Aircraft with Six AMRAAMs?

Ah ok! No it is very much possible.
