Roketsan Anti-Submarine Warfare (ASW) Rocket and Launcher System




The ASW Rocket is launched from naval platforms and effective against the underwater targets. Integrated with the sonar system of the naval platform, it can be used in 500-2000 m range and 15-300 m depth. The ASW weapon system is capable of automatic launcher laying.​
Click to see brochure

ROKETSAN ASW rocket can be fired in single or salvo modes from the stabilized launcher located on a naval platform. Detonation depth can be controlled remotely by using time setting fuze. ASW rocket has insensitive (IM) high explosive warhead and IM motor which are desired in modern naval weapon systems. The ASW Launching System (developed by Aselsan) has stabilization, automatic and manual launcher laying capabilities. The Fire Control System is capable of processing the navigation and target data obtained from the naval platform.

Technical Specifications
Rocketsan ASW.JPG


Rocketsan ASW4.JPG

Rocketsan ASW3.JPG

Rocketsan ASW2.JPG

Last edited by a moderator:

Khafee

Administrator
Staff member
Joined
Nov 17, 2017
Messages
12,324
Reactions
24,465 1,293 0
Yes Bro. That's the exact term. Thank you for assistance.
Unfortunately my English is not at academic level. Roketsan is also developing "cavitation torpedo" on Akya 533 mm basis.

The cavitation torpedo project is going on since 2013

http://akademi.itu.edu.tr/ounal/AkademikBilgiler/Projeler

Thanks for reading.
The Russians already have a cavitation torpedo, https://en.wikipedia.org/wiki/VA-111_Shkval and are developing a successor to Shkval, called The Khishchnik = Predator

Russia, Germany and the US are the only ones to posses this tech. Turkey joining this league? Congratulations!


Atalay

MEMBER
Joined
Dec 5, 2017
Messages
336
Reactions
283 9 0
Country
Turkey
Location
Germany
ASELSAN HIZIR (Torpedo Countermeasure System for Surface Ships)




State Of The Art Countermeasure Techniques for Modern Torpedo Attacks
  • Early detection
  • Accurate information
  • Effective countermeasure
  • Critical reaction time
aselsan HIZIR, torpedo counter measure system for surface high value platforms, localizes threat torpedo and advises the appropriate countermeasure tactics utilising its state-of-art torpedo detection array along with hull mounted sonar available on the ship. In addition to full automatic mode, system detects and chooses the countermeasure tactic from its database and waits for user approval to initiate the operation.
Basic System Configuration:
  • Torpedo Detection Array
  • Towed Decoy
  • Tow Cable
  • Winch
  • Winch Remote Control Unit
  • Signal Processing Unit
  • User Control Panels
  • Launcher
  • Launcher Remote Control Unit
  • Expandable Decoys
Basic System Capabilities:
Detection, Localization, Classification
  • Detection of Treat Torpedo at a Long Range
  • Precise Threat Detection
  • Classification by the Support of the Threat Database
Decision Support
  • Operator Consoles (CIC/Bridge)
  • User Defined Countermeasure Techniques
  • Combat Management System Interface
  • Sonar System Interface
Countermeasure Application
  • Wideband high acoustic power
  • Moving Target Decoys / Noise Jammer
Technical Capabilities
  • Open Architecture for Tailoring
  • Defense Capability Against to Different Types of Torpedoes
  • Multiple Target Tracking Capability (6)


Khafee

Administrator
Staff member
Joined
Nov 17, 2017
Messages
12,324
Reactions
24,465 1,293 0
Lockheed Martin’s Latest Electronic Warfare System for Helicopters to Safeguard U.S. Navy Against Anti-Ship Missile Threats


Lockheed Martin’s Advanced Off-Board Electronic Warfare (AOEW) Active Mission Payload (AMP) AN/ALQ-248 system, a pod hosted on an MH-60R or MH-60S, will enhance the way the U.S. Navy detects and responds to anti-ship missile threats.

SYRACUSE, N.Y., JAN. 12, 2017 – Lockheed Martin [NYSE: LMT] will build on its 45-year legacy of integrated electronic warfaresystem success under a newly awarded U.S. Navy development contract to provide MH-60 helicopters with enhanced electronic warfare surveillance and countermeasure capabilities against anti-ship missile (ASM) threats.

Lockheed Martin’s Advanced Off-Board Electronic Warfare (AOEW) Active Mission Payload (AMP) AN/ALQ-248 system, is a self-contained EW pod hosted by an MH-60R or MH-60S, which provides the Navy advanced ASM detection and response capabilities.

The AOEW program builds on Lockheed Martin’s legacy of proven electronic warfare solutions. The AOEW AMP AN/ALQ-248 can work independently or with the ship’s onboard electronic surveillance sensor, SEWIP Block 2 AN/SLQ-32(V)6, to detect an incoming missile and then evaluate where it is going. AOEW then uses radio frequency countermeasure techniques to deter the missile.

“Every day ships across the world are facing a variety of evolving threats,” said Joe Ottaviano, electronic warfare program director. “Our Advanced Off-Board Electronic Warfare AMP AN/ALQ-248 system will help create a coordinated attack against these threats, to keep our warfighters safe by controlling the electromagnetic spectrum and disrupting adversaries.”

Under this contract, if all options are exercised, Lockheed Martin will deliver up to 18 AOEW AMP AN/ALQ-248 pods to the U.S. Navy.

The AOEW program leverages expertise across Lockheed Martin. Manufacturing of the AOEW AN/ALQ-248 systems in Syracuse, N.Y., is slated to begin in early 2019 to meet the program’s 2021 initial operational capability goal. The Owego, N.Y., team will integrate the system onto the MH-60 helicopters, which are built by Sikorsky.

http://news.lockheedmartin.com/2017...rd-U-S-Navy-Against-Anti-Ship-Missile-Threats


Atalay

MEMBER
Joined
Dec 5, 2017
Messages
336
Reactions
283 9 0
Country
Turkey
Location
Germany
ATMACA -news published

Ship / Subsea and Land Launched Variants serial production began January 2018


350 mm scope. 6 meter length. Weight 800 kg.
Propulsion is TE-M-707 booster with 65 kg C1 composite fuel and domestic TR40 Turbojet .
36000lb thrust per second. RF+IIR dual seeker. Link 16 - network centric missile.

Exocet has in comparison also 12000 lb thrust per second composite booster = 8km within 2.9 seconds.





Khafee

Administrator
Staff member
Joined
Nov 17, 2017
Messages
12,324
Reactions
24,465 1,293 0
Germany’s SeaSpider anti-torpedo torpedo passes first sea trials
April 5, 2019

zoom

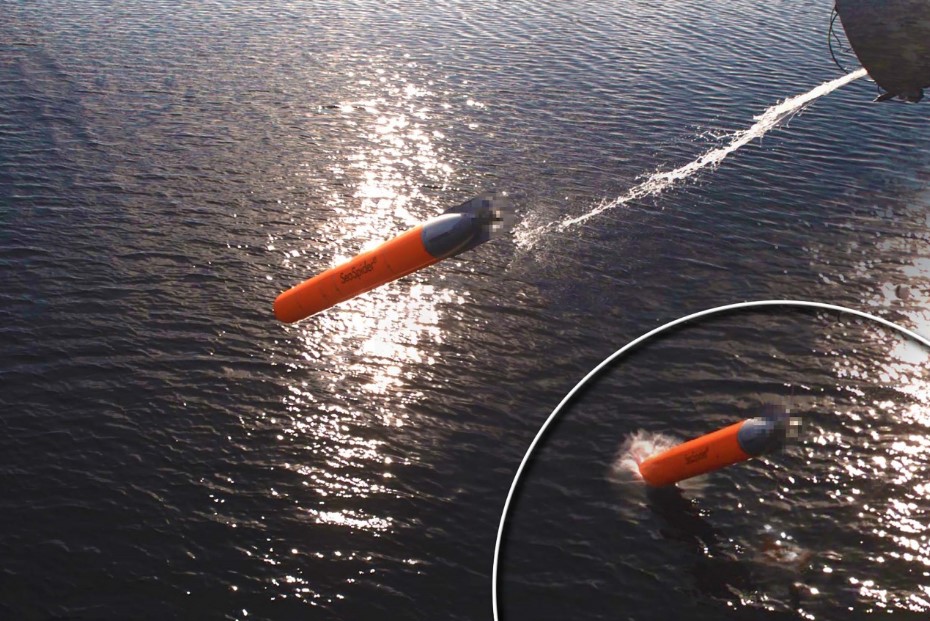

Surface Launch of the SeaSpider ATT prototype. Photo: Atlas Elektronik

German Bundeswehr Technical Center for ships and naval weapons, maritime technology and research (WTD 71) recently completed sea trials of the SeaSpider anti-torpedo torpedo in the Baltic Sea.

The trials were carried out sometime in 2018 from a WTD 71 multipurpose vessel in cooperation with defense contractor Atlas Elektronik. The results and photos have now been approved for release following an evaluation of the trials.

The tests saw the full “sensor to shooter” functional chain of a hardkill surface ship torpedo defense system being tested. These comprised the full functional chain with torpedo detection, classification and localisation (TDCL) sonar and the third generation SeaSpider prototype with its above water launcher.

At the WTD 71 test range, both an Mk37 torpedo derived AUV and torpedoes of the DM2A3 type served as the threats which were detected and localized with passive and active TDCL before the SeaSpider launch.

SeaSpider acquired the threats and homed in into closest point of approach (CPA). According to Atlas Elektronik, acoustic and optical means verified a successful intercept

Photo: Atlas Elektronik

Germany’s SeaSpider anti-torpedo torpedo passes first sea trials


Khafee

Administrator
Staff member
Joined
Nov 17, 2017
Messages
12,324
Reactions
24,465 1,293 0
Marine Corps Gets Long-Range Missile to Take Out Enemy Ships
9 May 2019
Military.com | By Hope Hodge Seck

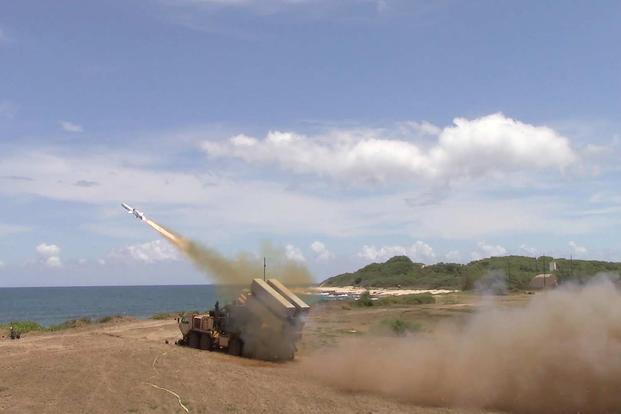

The Army fires a Naval Strike Missile from a Palletized Load System truck, hitting a decommissioned ship at sea, 63 miles north of Kauai, in July 2018 as part of the monthlong Rim of the Pacific Exercise. David Hogan/AMRDEC WDI

The Army fires a Naval Strike Missile from a Palletized Load System truck, hitting a decommissioned ship at sea, 63 miles north of Kauai, in July 2018 as part of the monthlong Rim of the Pacific Exercise. David Hogan/AMRDEC WDI

NATIONAL HARBOR, Maryland -- The Marine Corps is dropping nearly $48 million on Raytheon's Naval Strike Missile (NSM) as it moves toward a series of experiments involving striking enemy ships and maritime targets from land.

Raytheon announced this week during the Navy League's Sea-Air-Space conference outside Washington, D.C., that it will provide the NSM to the Marine Corps under a $47.59 million Other Transaction Authority agreement, a Pentagon spending category for experimentation and prototyping.

The deal follows a 2018 Navy contract with Raytheon to manufacture and deliver the NSM as the over-the-horizon missile system for the service's littoral combat ships and the frigates that will succeed them.

"The Marine Corps' selection of the Navy's anti-ship missile enhances joint interoperability and reduces costs and logistical burdens," Raytheon said in a statement.

Developed by Norway's Kongsberg Defence and Aerospace, the NSM features a 275-pound, high-explosive warhead and has an operational range of more than 100 nautical miles. In a high-profile experiment during the 2018 Rim of the Pacific Exercise, U.S. Army Pacific fired an NSM from a Palletized Load System truck to hit a decommissioned ship off the coast of Hawaii.

A spokesman for Marine Corps Systems Command, Manny Pacheco, said the service plans to integrate the missile onto land-based vehicles over the next few years.

"What the [Other Transaction Authority] is going to allow us to do is take that capability, put it on certain vehicle platforms to see what it can do," Pacheco said. "[The Marine Corps wants] to do a variety of test demonstrations on the capability."


Breaking Defense reported in January that the Marine Corps was moving forward fast with plans to develop a land-based, ship-sinking missile capability, as part of an effort called Navy-Marine Expeditionary Ship Interdiction System, or NMSIS. The outlet reported at the time that the Corps was considering NSM, Lockheed Martin Corp.'s Long-Range Anti-Ship Missile and Boeing's Harpoon for the development program. It added that the service is considering three different vehicles as a missile launch platform, including the M142 High Mobility Artillery Rocket System; the Medium Tactical Vehicle Replacement, or 7-ton, truck; and the Logistic Vehicle System Replacement.

Pacheco indicated that a vehicle platform had not yet been selected, and specifics of timeline and experimentation moving forward would hinge, to some extent, on that decision.

Under Marine Corps Commandant Gen. Robert Neller, the Corps has become more aggressive in experimentation and pursuit of capabilities that can be integrated into existing platforms.

In 2017, Marine Maj. Gen. David Coffman, the Navy's director of Expeditionary Warfare, told Military.com that the Corps wanted a truck-mounted rocket system compact enough to fit in an MV-22 Osprey. The same year, the Marines fired HIMARS from the back of an amphibious ship, obliterating a land target 43 miles away.

In February, Neller told USNI News the Marine Corps wanted a long-range anti-ship missile as fast as possible to support the Navy from the land in sea-control efforts.

"There's a ground component to the maritime fight. We're a naval force in a naval campaign; you have to help the ships control sea space. And you can do that from the land," he told the outlet.

Randy Kempton, Raytheon's NSM program director, told Military.com at Sea-Air-Space that the Marine Corps' selection of NSM is a big deal for the company.

"A year ago, we were at this show and we weren't quite sure where the Navy was going with NSM. We didn't have a big contract," he said. "Fast-forward a year, and the Navy's got us under contract for a program of record, and in about a year's timeframe, we're already integrating into another service. So from our perspective, it's a big deal. It's gaining momentum."



Last edited:

Khafee

Administrator
Staff member
Joined
Nov 17, 2017
Messages
12,324
Reactions
24,465 1,293 0
Moroccan Harpoon Block II missiles to be ‘non-coastal’ versions
28 April 2020

The Boeing AGM-84L Harpoon Block II missiles that the United States has approved for the Royal Moroccan Air Force (RMAF) are the "non-coastal target suppression" version, according to an arms sale notification published by the US Federal Register on 27 April.

This reduction in capability was not mentioned when the Defense Security Cooperation Agency (DSCA) announced on 14 April that the US State Department had approved the sale of 10 AGM-84Ls for an estimated USD62 million for use by the RMAF's F-16 multirole fighters.

The AGM-84L was designed to have a substantially improved ability to find target ships sailing close to shore or in congested waters.



Khafee

Administrator
Staff member
Joined
Nov 17, 2017
Messages
12,324
Reactions
24,465 1,293 0
USS Gabrielle Giffords launches Naval Strike Missile in operational test
March 30, 2021
By Christen McCurdy


The littoral combat ship USS Gabrielle Giffords launches a Naval Strike Missile earlier this month as part of shipboard operational testing and evaluation. Photo by U.S. Navy

March 30 (UPI) -- The USS Gabrielle Giffords successfully launched the Naval Strike Missile earlier this month, the Navy announced on Tuesday.

According to a Navy press release, the Giffords launched the missile as part of shipboard operational testing and evaluation March 19.

"The recent missile launches were a great accomplishment for Gabrielle Giffords and the LCS community," Cmdr. Michael Piano, commanding officer of Gabrielle Giffords' Blue Crew, said in the release.

"I am especially proud of Gabrielle Giffords Blue and grateful for Surface Division Eleven's support to score this win for our Navy," Piano said.

The Giffords, an Independence-class littoral combat ship, first launched a Naval Strike Missile in 2019.

According to the Navy, this month's test shows value for long-range anti-ship cruise missiles aboard littoral combat ships, which are relatively small vessels built for shallow-water maneuvering.

In January, the Navy announced plans to integrate anti-ship missiles -- one of which is the Naval Strike Missile -- on a variety of vessels, including Independence-class LCS like the Giffords and amphibious docking ships.
