Anti ship missile from Halcon HAS-250 with 250km range and 0.8 mach speed.








Missile similar to Denel Cheetah developed with South African engineers.








NASEF-120 is LCCM or a Low Cost Cruise Missile..
It weight 100 kg and the warhead is 50 kg .. its range is 120 km when launched by air (air to ground version) and 90 km when launched from ground platforms with a missile booster (with the booster weighing 25 kg), ( ground to ground version) .. it is directed by satellite navigation and inertia systems.. in addition to an electro-optical researcher.. CEP..10 m with GAINS (GNSS assisted INS) only and 3 m with GAINS + SAL.


Khafee

Administrator
Staff member
Joined
Nov 17, 2017
Messages
11,479
Reactions
265 21,724 1,098
Country
Saudi Arabia
Location
Saudi Arabia

Joined
Oct 3, 2019
Messages
82
Reactions
2 110 10
Country
Jordan
Location
USA




He mentioned the QX gravity launched missiles have a camera on it.

I think that is what the Halcon tv seeker was for in my opinion. The seeker can lock on targets and achieve 1 meter cep.

Joined
Oct 3, 2019
Messages
82
Reactions
2 110 10
Country
Jordan
Location
USA
@Khafee
I apologize, I didn't think loitering munition would come under the class of missile but I will take your advice.






Halcon loitering munition with 250km range and 25 or 50 kg payload.


Khafee

Administrator
Staff member
Joined
Nov 17, 2017
Messages
11,479
Reactions
265 21,724 1,098
Country
Saudi Arabia
Location
Saudi Arabia


Khafee

Administrator
Staff member
Joined
Nov 17, 2017
Messages
11,479
Reactions
265 21,724 1,098
Country
Saudi Arabia
Location
Saudi Arabia

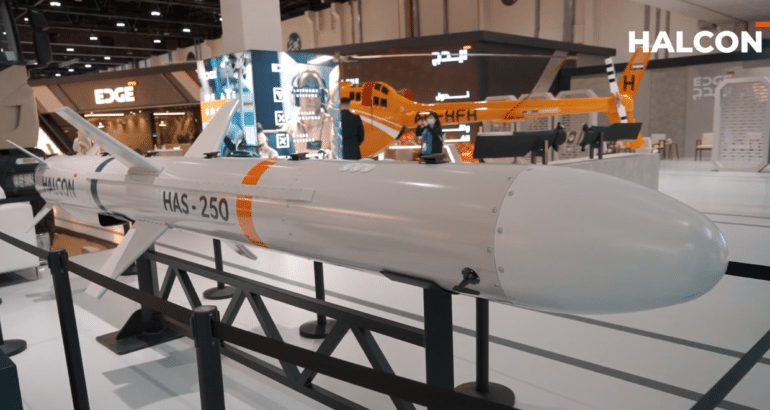

Anti ship missile from Halcon HAS-250 with 250km range and 0.8 mach speed.


View attachment 17491


View attachment 17495


Missile similar to Denel Cheetah developed with South African engineers.

View attachment 17493



View attachment 17494

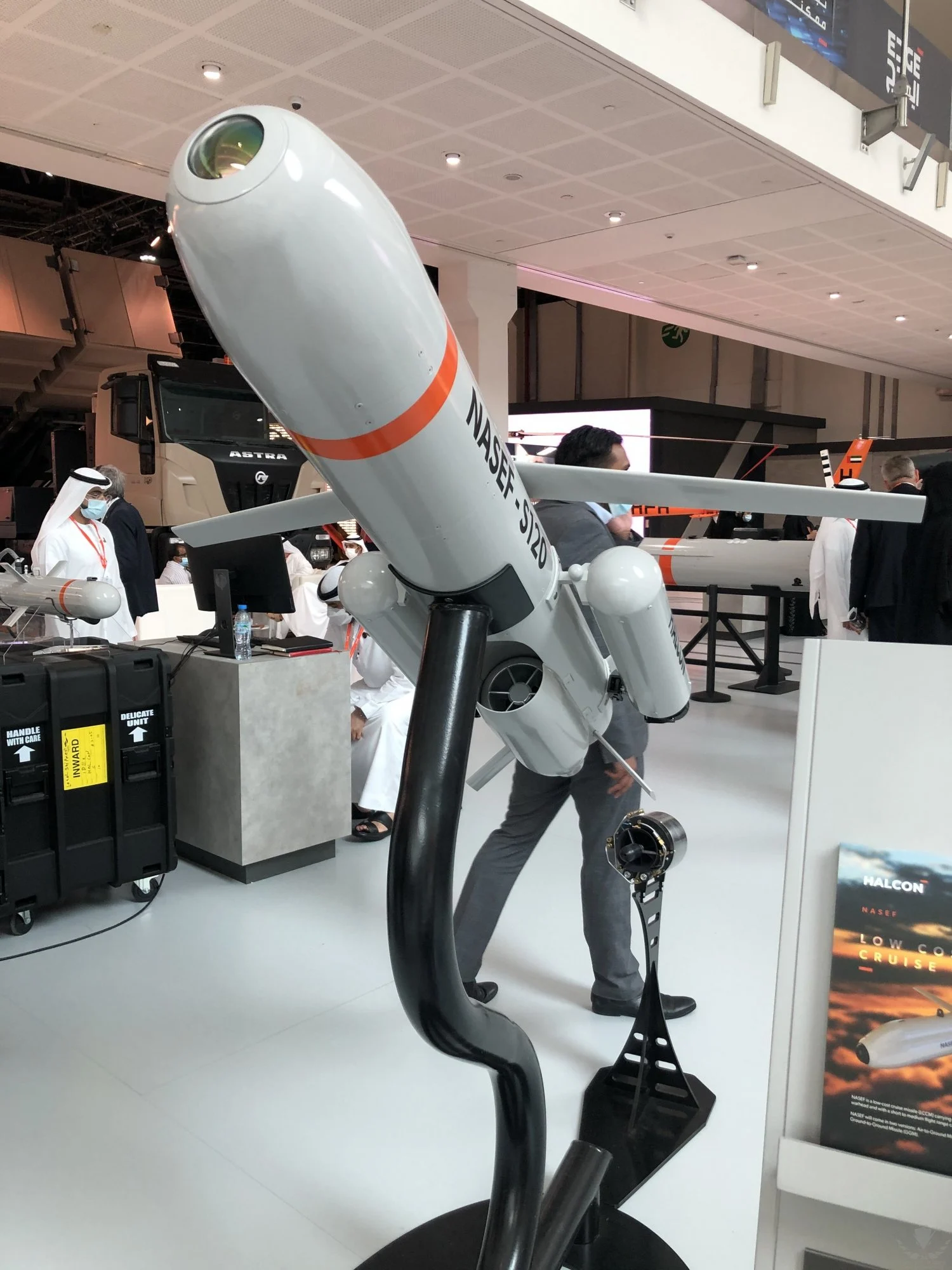

NASEF-120 is LCCM or a Low Cost Cruise Missile..
It weight 100 kg and the warhead is 50 kg .. its range is 120 km when launched by air (air to ground version) and 90 km when launched from ground platforms with a missile booster (with the booster weighing 25 kg), ( ground to ground version) .. it is directed by satellite navigation and inertia systems.. in addition to an electro-optical researcher.. CEP..10 m with GAINS (GNSS assisted INS) only and 3 m with GAINS + SAL.
View attachment 17492

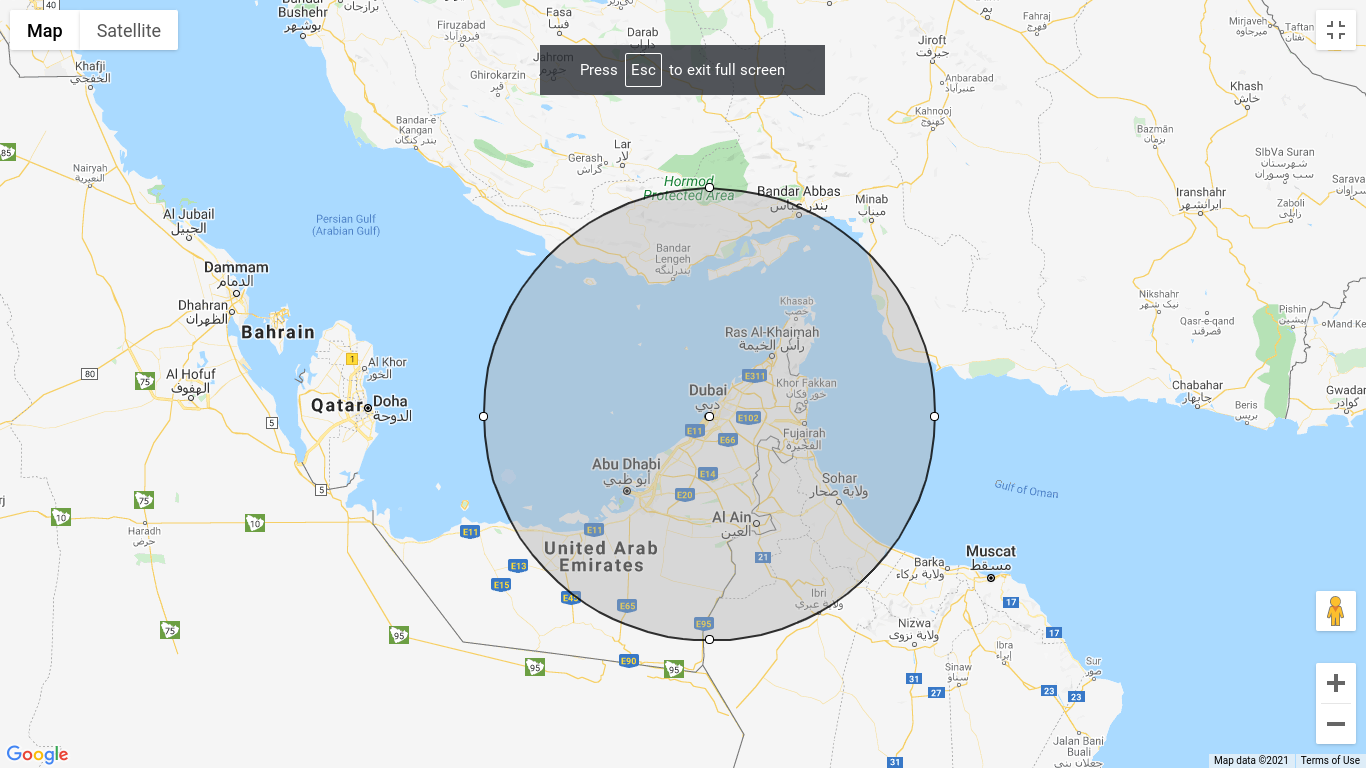

HAS-250 anti ship missile range if launched from near Dubai

Warhead weight is 200kg, and total weight 1200kg

View attachment 17686

During its terminal phase, it can fly towards its target at a sea-skimming altitude of below 5m


Khafee

Administrator
Staff member
Joined
Nov 17, 2017
Messages
11,479
Reactions
265 21,724 1,098
Country
Saudi Arabia
Location
Saudi Arabia
@Khafee
I apologize, I didn't think loitering munition would come under the class of missile but I will take your advice.




View attachment 17685

Halcon loitering munition with 250km range and 25 or 50 kg payload.

HALCON EDGE from UAE has designed Shadow jet-engine powered UAVs loitering munitions

09 April 2021

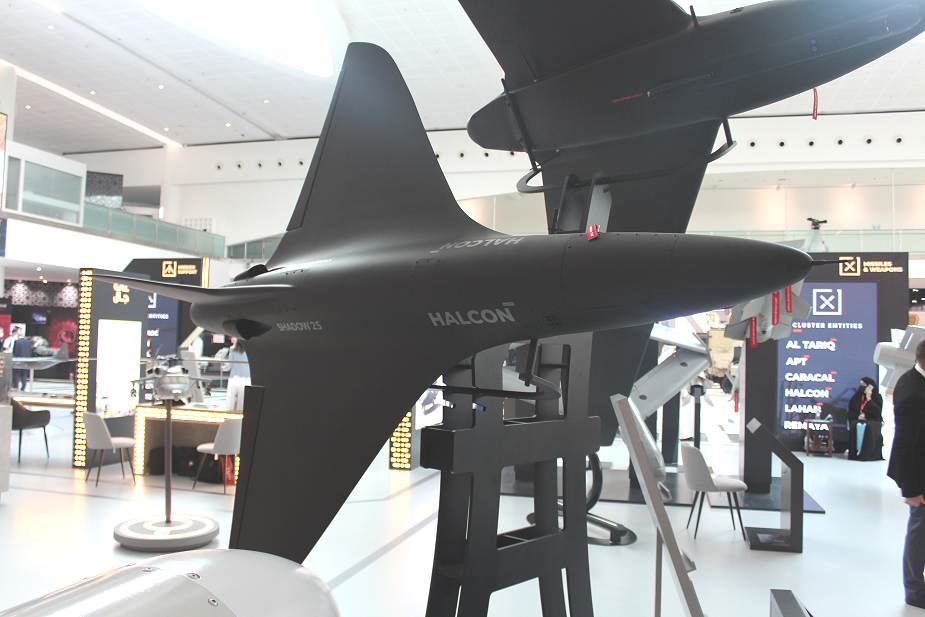

HALCON Shadow 25 jet-engine Unmanned Aerial Vehicle loitering munition.

Delivering high precision strikes against fixed targets and advanced guidance capabilities, these UAVs leverage Global Navigation Satellite Systems (GNSS) and can fly using video navigation systems in GPS-denied environments.

The design of the Shadow UAVs is similar to a fighter aircraft with a cropped-delta wing incorporating wing-fuselage blending, a tail fin, and a jet engine. The lower part of the fuselage is equipped with electro-optic systems and a camera.

The HALCON Shadow 25 unmanned aerial vehicle (UAV) provides defense forces with jet-powered, rapid-strike kamikaze munitions capable of delivering a precision strike against fixed targets.

Featuring advanced guidance capabilities and onboard video navigation, the Shadow 25 system has a cruising speed of 450 km/h and a flight endurance of 1 hour, creating new opportunities to swiftly neutralize stationary enemy targets with a powerful 25 kg payload, even those located up to 250 km away.

The Shadow 25 has a takeoff weight of 80 kg, a wingspan of 2.36 m, a length of 2.84 m, and a height of 0.76 m. The drone is also equipped with an onboard navigation system and has advanced guidance capability.

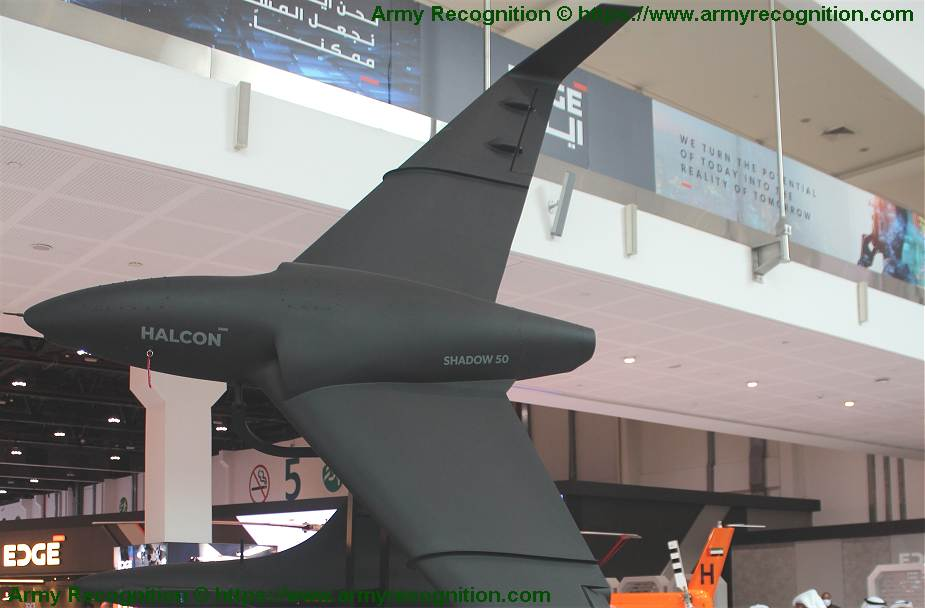

HALCON Shadow 50 jet-engine Unmanned Aerial Vehicle loitering munition.



With a length of 3.07 m, a wingspan of 4.05 m, a height of 0.58 m, the Shadow 50 is the largest version in the Shadow family of jet-powered loitering munitions unmanned aerial vehicle systems. With a length of 3.07 m, a wingspan of 4.05 m, a height of 0.58 m, the Shadow 50 is powered by a jet engine and can fly at a cruising speed of 200 km/h.

Featuring advanced guidance capabilities and onboard video navigation, the Shadow 50 system enables the rapid delivery of large payloads up to 50 kg, while offering mission flexibility with a 250 km range and 4-hour endurance.
