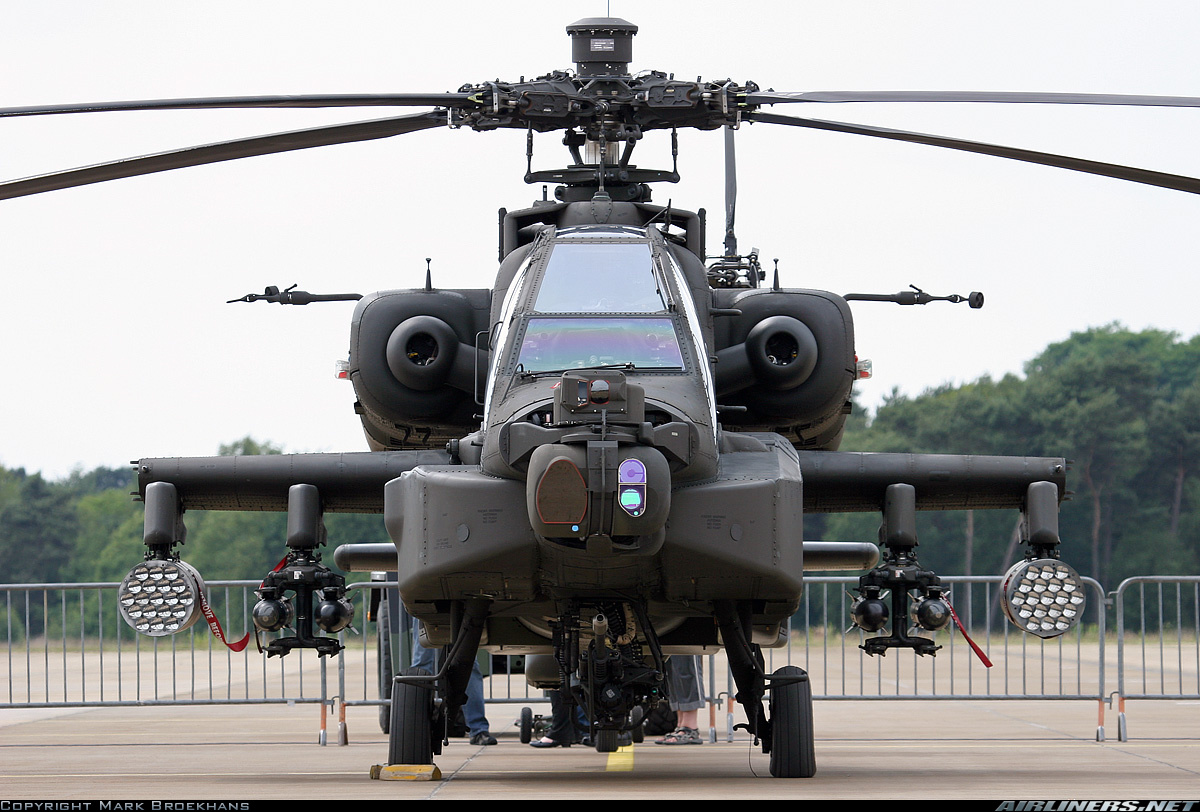

The Apache is a twin-engined army attack helicopter developed by McDonnell Douglas (now Boeing). It entered service with the US Army in 1984 and has been exported to Egypt, Greece, Israel, the Netherlands, Japan, Saudi Arabia, United Arab Emirates (UAE) and the UK.



The AH-64D Longbow is fitted with the Longbow millimetre wave fire control radar and the Longbow Hellfire missile. 501 AH-64A Apaches upgraded to AH-64D standard have been delivered to the US Army. Deliveries completed in August 2006.




International Apache orders and deliveries
The Longbow has been ordered by the Netherlands (30, deliveries complete), Singapore (20 deliveries complete, first delivered in May 2002), Israel (designated "Seraph" nine new, nine remanufactured, first delivered April 2005) and Egypt (35, remanufactured, deliveries completed in January 2007).

The Royal Netherlands Air Force received its first AH-64D Apache and first AH-64D Apache Block III aircraft in May 1998 and in May 2012 respectively.


AH-64A/D Apache upgrades
The first of the upgraded block II Apaches was delivered to the US Army in February 2003. Block II included upgrades to the digital communications systems of 96 A-model Apaches to improve communications within the "tactical internet". In October 2007, Boeing delivered the first extended block II to the US Army.


Block III includes increasing digitisation, the joint tactical radio system, enhanced engines and drive systems, capability to control UAVs and new composite rotor blade. The new blades, which successfully completed flight testing in May 2004, increase the Apache's cruise speed, climb rate and payload capability.


Apache weapons

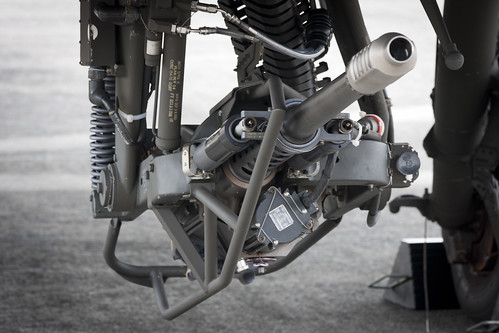

A 30mm automatic Boeing M230 chain gun is located under the fuselage. It provides a rate of fire of 625 rounds a minute. The helicopter has capacity for up to 1,200 rounds of ammunition.


The AH-64D is armed with the Lockheed Martin / Boeing AGM-114D Longbow Hellfire air-to-surface missile which has a millimetre wave seeker which allows the missile to perform in full fire and forget mode. Range is 8km to 12km.


"The helicopter has capacity for up to 1,200 rounds of ammunition."

The Apache can be equipped with air-to-air missiles (Stinger, AIM-9 Sidewinder, Mistral and Sidearm) and the advanced precision kill weapon system (APKWS), formerly known as Hydra, family of guided and unguided 70mm rockets. Plans to arm the Apache with the advanced precision kill weapon system (APKWS) II, a laser-guided version of the Hydra were shelved in the FY2008 budget. The US Army awarded BAE Systems a development contract for the APKWS II in April 2006.

British Army AH mk1 helicopters are armed with the CRV7 70mm rocket system from Bristol Aerospace of Winnipeg, Manitoba.

The Longbow Apache carries the combination of armaments chosen for the particular mission. In the close support role, the helicopter carries 16 Hellfire missiles on four four-rail launchers and four air-to-air missiles.

Sensors
The AH-64D Longbow Apache is equipped with the Northrop Grumman millimetre-wave Longbow radar. The Longbow fire control radar incorporates an integrated radar frequency interferometer for passive location and identification of radar-emitting threats. An advantage of millimetre wave is that it performs under poor-visibility conditions and is less sensitive to ground clutter. The short wavelength allows a very narrow beamwidth, which is resistant to countermeasures.


The Longbow Apache can effect an attack in 30 seconds. The radar dome is unmasked for a single radar scan and then remasked. The processors determine the location, speed and direction of travel of a maximum of 256 targets.

The target acquisition designation sight, TADS (AN/ASQ-170), and the pilot night vision sensor, PNVS (AN/AAQ-11), were developed by Lockheed Martin. The turret-mounted TADS provides direct-view optics, television and three-fields-of-view forward-looking infrared (FLIR) to carry out search, detection and recognition, and Litton laser rangefinder / designator. PNVS consists of a FLIR in a rotating turret located on the nose above the TADS. The image from the PNVS is displayed in the monocular eyepiece of the Honeywell integrated helmet And display sighting system, IHADSS, worn by the pilot and copilot / gunner.


Lockheed Martin has developed a new targeting and night vision system for the Apache, using second-generation long-wave infrared sensors with improved range and resolution. The new system is called Arrowhead and has a targeting FLIR with three fields of view, a dual field-of-view pilotage FLIR, a CCD TV camera, electronic zoom, target tracker and auto-boresight.

"Lockheed Martin has developed a new targeting and night vision system for the Apache."
Arrowhead entered production in December 2003 and the first unit was delivered to the US Army in May 2005. The first Arrohead system was integrated to the Apache helicopter in June 2005. A total of 704 US Army Apaches were to be equipped with Arrowhead by 2011. The 500th delivery was made in 2008 and the remaining deliveries were completed as scheduled. The US Army has also placed follow-on contracts for additional Arrowhead fittings to its fleet of Apaches, increasing the total number of Arrowhead integrations for the US Army.

A contract to equip the UK AH Mk1 helicopters with Arrowhead was placed in May 2005. The first two were delivered in November 2008 and deliveries concluded in 2010.

Countermeasures

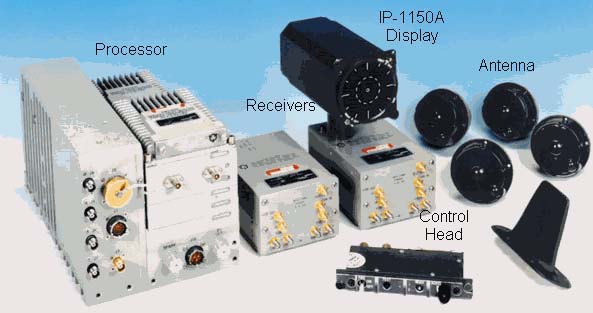

The Apache is equipped with an electronic warfare suite consisting of: AN/APR-39A(V) radar warning receiver from Northrop Grumman (formerly Litton) and Lockheed Martin; Lockheed Martin AN/APR-48A Radar Frequency Interferometer Electronic Support target acquisition system; AN/ALQ-144 infra-red countermeasures set from BAE Systems IEWS (formerly Sanders, a Lockheed Martin company); AN/AVR-2 laser warning receiver from Goodrich (formerly Hughes Danbury Optical Systems then Raytheon); AN/ALQ-136(V) radar jammer developed by ITT; and chaff dispensers.



US Army Longbow Apaches were to be fitted with the ITT AN/ALQ-211 SIRCM (suite of integrated radio frequency countermeasures) suite, however the availability of funding for this project is uncertain.

UK AH mk1 Apaches are fitted with BAE Systems helicopter integrated defensive aids suite (HIDAS), also chosen by Kuwait and Greece. HIDAS, which includes the Sky Guardian 2000 radar warning receiver, entered service on the AH mk1 in July 2003.

Israeli AH-64D helicopters are fitted with the Elisra Seraph self-protection system, including SPS-65 missile warner and SPJ-40 radar jammer.

Dutch AH-64D helicopters are being fitted with the Northrop Grumman directional infrared countermeasures (DIRCM) pod.

Engines
The Apache is equipped with two turboshaft engines, each providing 1,265kW. The American AH-64D has General Electric T700-GE-701 engines and the UK Apache is fitted with RTM322 engines from Rolls-Royce / Turbomeca.



Performance
The AH-64 Apache can climb at a rate of 889m/min. The maximum and cruise speeds of the helicopter are 279km/h and 260km/h respectively. The ferry range and service ceiling of the helicopter are 1,900km and 6,400m respectively. The endurance is 3 hours 9 minutes. The helicopter weighs around 5,165kg, while the maximum take-off weight is 10,433kg.

Ratings
2 52 0
Joined
Nov 28, 2014
Messages
90
Country
USA
Location
USA
#2
Aerospatiale SA.332 Super Puma



  • Origin
  • France
  • Type
  • transport helicopter
  • Max Speed
  • 141 kt / 163 mph
  • Max Range
  • 842 km / 523 miles
  • Dimensions
  • main rotor diam. 15.60 m /
  • 51 ft 2.2 in
  • length 18.70 m / 61 ft 4.2 in
  • height 4.92 m / 16ft 1.7 in
  • Weight
  • empty 4, 460 kg / 9,832 lb
  • max. take-off 9000 kg / 19,841 lb
  • Powerplant
  • two 1400-kW (1,877-shp) Turbomeca Makila turboshafts
  • Armament
  • optional cannon, machine-guns or rocket-launcher pods

Ratings
2 52 0
Joined
Nov 28, 2014
Messages
90
Country
USA
Location
USA
#3
Aerospatiale SA.330L Puma




  • Origin
  • France
  • Type
  • medium transport helicopter
  • Max Speed
  • 263 km/h / 163 mph
  • Max Range
  • 550 km / 342 miles
  • Dimensions
  • main rotor diameter 15.00 m (49 ft 2.6 in) length, rotors turning 18.15 m (59 ft 6.6 in) height 5.14 m (16 ft 10.4 in)
  • Weight
  • empty 3615 kg (7,970 Ib); maximum take-off 7400 kg (16,314 Ib) with an internal load or 7500 kg (16,535 Ib) with a slung load
  • Powerplant
  • two 1175-kW (1,575-shp) Turbomeca Turmo IVC turboshafts
  • Armament
  • generally none, but can include 7.62-mm (0.3-in) forward-firing machine guns, 20-mm side-firing cannon, missiles and rocket-launcher pods

Ratings
2 52 0
Joined
Nov 28, 2014
Messages
90
Country
USA
Location
USA
#4
Aerospatiale SA.341 Gazelle

Aerospatiale SA.341 Gazelle  .jpg

  • Origin
  • France
  • Type
  • anti-tank helicopter
  • Max Speed
  • 168 kt / 193 mph
  • Max Range
  • 755 km / 469 miles
  • Dimensions
  • main rotor diam. 10.50 m / 34 ft 5.4 in length 11.97 m / 39 ft 3.3 in height 3.18 m / 10 ft 5.2 in
  • Weight
  • empty 975 kg / 2,150 lb max. take-off 1900 kg / 4,189 lb
  • Powerplant
  • one 640-kW (858-shp) Turbomeca Astazou XIVM turboshaft
  • Armament
  • can include one or two 7.62-mm (0.3-in) machine-guns, or one 20-mm GIAT M621 cannon, plus four or six HOT anti-tank missiles, or two rocket-launcher pods, or two AS. 12 wire-guided missiles

Ratings
2 52 0
Joined
Nov 28, 2014
Messages
90
Country
USA
Location
USA
#5
Aerospatiale SA.321G Super Frelon




  • Origin
  • France
  • Type
  • ASW helicopter
  • Max Speed
  • 248 km/h / 154 mph
  • Max Range
  • endurance 4 hours in the ASW role
  • Dimensions
  • main rotor diameter 18.90 m (62 ft 0 in) length, rotors turning 23.03 m (75 ft 6.7 in) height 6.76 m (22 ft 2.1 in)
  • Weight
  • empty 6863 kg (15,130 Ib); maximum take-off 13000 kg (228,660 Ib)
  • Powerplant
  • three 1,171-kW (1,570-shp) Turbomeca Turmo IIIC6 turboshafts
  • Armament
  • four homing torpedoes in the ASW role or two Exocet missiles in the ASV role

Ratings
2 52 0
Joined
Nov 28, 2014
Messages
90
Country
USA
Location
USA
#6
Aerospatiale SA.365 Dauphin 2


313-Marine-Nationale-French-Navy-Arospatiale-SA-365-Dauphin_PlanespottersNet_183923.jpg

  • Origin
  • France
  • Type
  • two-crew multi-role military helicopter
  • Max Speed
  • 150 kt / 173 mph
  • Max Range
  • 875 km / 544 miles
  • Dimensions
  • main rotor diam. 11.94 m / 39 ft 2 in length 13.68 m / 44 ft 10.625 in height 3.99 m / 13 ft 1 in
  • Weight
  • empty 2,193 kg / 4,835 lb max. take-off 4,250 kg / 9,369 lb
  • Powerplant
  • two 584-kW (783-shp) Turbomeca Arriel 1M1 turboshafts
  • Armament
  • HOT anti-tank missiles, Mistral air-to-air missiles, cannon or machine-guns pods, or rocket-launcher pods

Ratings
2 52 0
Joined
Nov 28, 2014
Messages
90
Country
USA
Location
USA
#7
Agusta A-129 Mangusta




  • Origin
  • Italy
  • Type
  • light anti-tank and multi-role military helicopter
  • Max Speed
  • 179 kt / 196 mph
  • Max Range
  • Undisclosed
  • Dimensions
  • main rotor diam. 11.90 m /
  • 39 ft 0.5 in
  • length 14.29 m / 46 ft 10.6 in
  • height 3.315 m / 10ft 10.5 in
  • Weight
  • empty 2520 kg / 5,575 lb
  • max. take-off 4100 kg / 9,038 lb
  • Powerplant
  • two 608-kW (815-shp) Piaggio (Rolls-Royce) Gem 2 Mk 1004D turboshafts each with an emergency rating of
  • 772 kW (1,035 shp)
  • Armament
provision for 1200 kg (2,646 lb) of stores carried on four hardpoints, and generally comprising eight TOW anti-tank missiles and two machine-gun or rocket-launcher pods

Ratings
2 52 0
Joined
Nov 28, 2014
Messages
90
Country
USA
Location
USA
#8
Bell AH-1 Cobra


  • Origin
  • USA
  • Type
  • anti-armour and close support/attack helicopter
  • Max Speed
  • 123 kt / 141 mph
  • Max Range
  • 507 km /305 miles
  • Dimensions
  • main rotor diam. 13.41 m / 44 ft 10 in length 16.18 m / 53 ft 1 in height 4.09 m / 13ft 5 in
  • Weight
  • empty 2,993 kg / 6,598 lb max. take-off 4,536 kg / 10,000 lb
  • Powerplant
  • one 1342-kW (1,800-shp) Lycoming T53-L-703 turboshaft
  • Armament
  • one General Electric Universal Turret for one three-barrel M197 20 mm gun, and provision for eight TOW missiles on the outboard hardpoints and on the inboard hardpoints weapons such as Stinger AAMs and rocket-launcher pods

Ratings
2 52 0
Joined
Nov 28, 2014
Messages
90
Country
USA
Location
USA
#9
Bell 214ST


Bell 214st.jpg


  • Origin
  • USA
  • Type
  • civil and military transport helicopter
  • Max Speed
  • 256 km/h / 159 mph
  • Max Range
  • 805 km / 500 miles
  • Dimensions
  • main rotor diameter 15.85 m (52 ft 0 in)
  • length, rotors turning 18.95 m (62 ft 2.05 in)
  • height 4.84 m (15 ft 10.5 in)
  • Weight
  • maximum take-off 7938 kg (17,500 Ib)
  • Powerplant
  • two 1212-kW (1,625-shp) General Electric CT7-2 turboshafts
  • Armament
  • none

Ratings
2 52 0
Joined
Nov 28, 2014
Messages
90
Country
USA
Location
USA
#10
Bell UH-1 Huey

Bell UH-1 Huey  .jpg



  • Origin
  • USA and Italy
  • Type
  • multi-role military helicopter
  • Max Speed
  • 120 kt / 138 mph
  • Max Range
  • 580 km / 360 miles
  • Dimensions
  • main rotor diam. 14.71 m / 48 ft 3.2 in length 17.39 m / 57 ft 0.7 in height 4.48 m / 14ft 8.4 in
  • Weight
  • empty 2,177 kg / 4.800 lb max. take-off 4,309 kg / 9,500 lb
  • Powerplant
  • one 1,400-shp (1044-kW) Avco Lycoming T53-L-1 3B turboshaft flat-rated at 1,100 shp (820 kW)
  • Armament
  • can include, singly or in combination, 7.62-mm (0.3-in) and 12.7-mm (0.5-in) machine guns. 7.62-mm (0.3-in) Minigun, 70-mm (2.75-in) rockets, AS.12 air-to-surface missiles, and TOW anti-tank missiles

Ratings
2 52 0
Joined
Nov 28, 2014
Messages
90
Country
USA
Location
USA
#11
CH-47 Chinook

CH-47 Chinook.jpg

  • Origin
  • USA
  • Type
  • medium transport helicopter
  • Max Speed
  • 157 kt / 181 mph
  • Max Range
  • 2,020 km / 1,255 miles
  • Dimensions
  • rotor diam. each 18.29 m / 60 ft 0 in length 30.18 m / 99 ft 0 in height 5.68 m / 18 ft 7.8 in
  • Weight
  • empty 10,475 kg / 23,093 lb max. take-off 22,680 kg / 50,000 lb
  • Powerplant
  • two Lycoming T55-L-712 turboshafts each with a standard rating of 2796 kW (3,750 shp) and emergency rating of 3356 kW (4,500shp)
  • Armament
  • none


WebMaster

Administrator
Ratings
5 434 0
Joined
Nov 25, 2014
Messages
646
#12
Moved from another thread posted by @Stealth

AH​






Apache Longbow Helicopter


Blackhawk​


AH 64 Apache Helicopter​


H 60 Seahawk​





Ratings
0 9 0
Joined
Mar 19, 2015
Messages
55
Country
USA
Location
USA
#13
Hands down one of the most impressive things I've ever seen. I wonder how much a single Apache costs with all those electronic systems? I noticed that most helicopter types were designed to be ultra modular and very versatile; perfect for specialized missions.
