This thread is for special purposes aircraft, AWACS and AEW&C.

Let us define what is AWACS and AEW&C.

AWACS is "Airborne Warning And Control System"

AEW&C is "Airborne Early Warning and Control"

Special purposes aircraft can be used for:

  • Reconnaissance
  • Electronic warfare missions
  • Aerial Refueling/Air Tanker
  • Maritime Patrol
  • Observation
Before I start posting about this I would like to thank @Justin for giving me a great and informative reference that helps enrich this thread. I will use your style if you allow me. I find it very simple and organized.

Last edited:

Scorpion

THINK TANK
Joined
Nov 27, 2014
Messages
2,758
Reaction score
1,898
Country
Saudi Arabia
Location
Saudi Arabia
Boeing E-3 Sentry


  • Origin
  • USA
  • Type
  • airborne early-warning and control aircraft
  • Max
  • Speed
  • 853 km/h / 530 mph
  • Max
  • Range
  • endurance on station 1609 km (1,000 miles) from base 6 hours; maximum unrefuelled endurance exceeds 11 hours
  • Dimensions
  • span 44.42 m (145 ft 9 in)
  • length 46.61 m (152 ft 11 in)
  • height 12.73 m (41 ft 9 in)
  • Weight
  • maximum take-off 147,418 kg / 325,000 Ib
  • Powerplant
  • four 9525-kg (21,000Ib) thrust Pratt & Whitney TF33-PW-100A turbofan engines; (Saudi 9979-kg/22,000-lb CFM56-2-A2 turbofans)
  • Armament
  • none
  • Operators:
  • France (E-3F), Saudi Arabia (E-3A), United Kingdom (E-3D), United States (E-3B/C)


Scorpion

THINK TANK
Joined
Nov 27, 2014
Messages
2,758
Reaction score
1,898
Country
Saudi Arabia
Location
Saudi Arabia
Boeing KC-10A Extender



  • Origin
  • USA
  • Type
  • strategic inflight-refuelling tanker and transport aircraft
  • Max Speed
  • 982 km/h / 610mph
  • Max Range
  • range 7032 km / 4,370 miles
  • Dimensions
  • span 50.41 m / 165 ft 4.4 in length 55.35 m / 1,891 ft 7 in height 17.70 m / 58 ft 1 in
  • Weight
  • maximum take-off 267620 kg / 590,000 Ib
  • Powerplant
  • three 23814-kg 52,500-lb) thrust General Electric CF6-50C2 turbofans
  • Armament
  • none
  • Operators:
  • United States


Scorpion

THINK TANK
Joined
Nov 27, 2014
Messages
2,758
Reaction score
1,898
Country
Saudi Arabia
Location
Saudi Arabia
Boeing KC-135 Stratotanker




  • Origin
  • USA
  • Type
  • inflight-refuelling tanker/cargo/transport aircraft
  • Max Speed
  • 460 kt / 530 mph
  • Max Range
  • 4,627 km / 2,875 miles
  • Dimensions
  • span 39.88 m / 130 ft 10 in length 41.53 m / 136 ft 3 in height 12.70 m / 41 ft 8 in
  • Weight
  • maximum take off 146,284 kg / 322,500 lb maximum fuel load 92,210 kg (203,288 lb)
  • Powerplant
  • four 9979-kg (22,000 Ib) dry thrust CFM International F108-CF-100 turbofans
  • Armament
  • none
  • Operators:
  • Australia (707 Conversion), Brazil (707 Conversion), France, Israel (707 Conversion), Italy (707 Conversion), Morocco (707 Conversion), South Africa (707 Conversion), Singapore, Spain (707 Conversion), Turkey, United States, Venezuela (707 Conversion)


Scorpion

THINK TANK
Joined
Nov 27, 2014
Messages
2,758
Reaction score
1,898
Country
Saudi Arabia
Location
Saudi Arabia

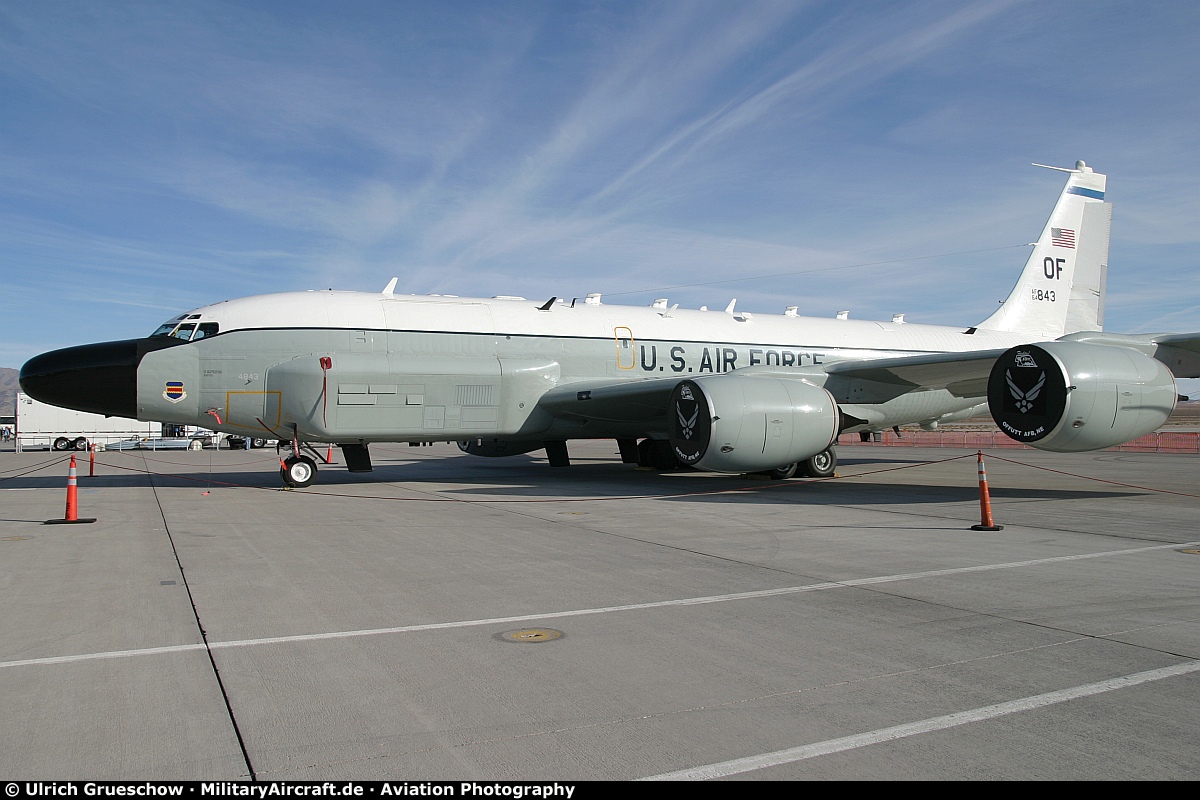

Boeing RC-135




  • Origin
  • USA
  • Type
  • electronic reconnaissance aircraft
  • Max Speed
  • 535 kt / 616 mph
  • Max Range
  • 9100 km / 5,655 miles
  • Dimensions
  • span 39.88 m / 130 ft 10 in
  • length 39 20 m / 128 ft 7.3 in
  • height 12.70 m / 41 ft 8 in
  • Weight
  • empty 46,403 kg / 102,300 lb
  • maximum take-off 124,965 kg / 275,500 lb
  • Powerplant
  • four 8165-kg (18,000-lb) dry thrust Pratt & Whitney TF33-P-9 turbofans
  • Armament
  • none
  • Operators:
  • United Kingdom, United States


Scorpion

THINK TANK
Joined
Nov 27, 2014
Messages
2,758
Reaction score
1,898
Country
Saudi Arabia
Location
Saudi Arabia

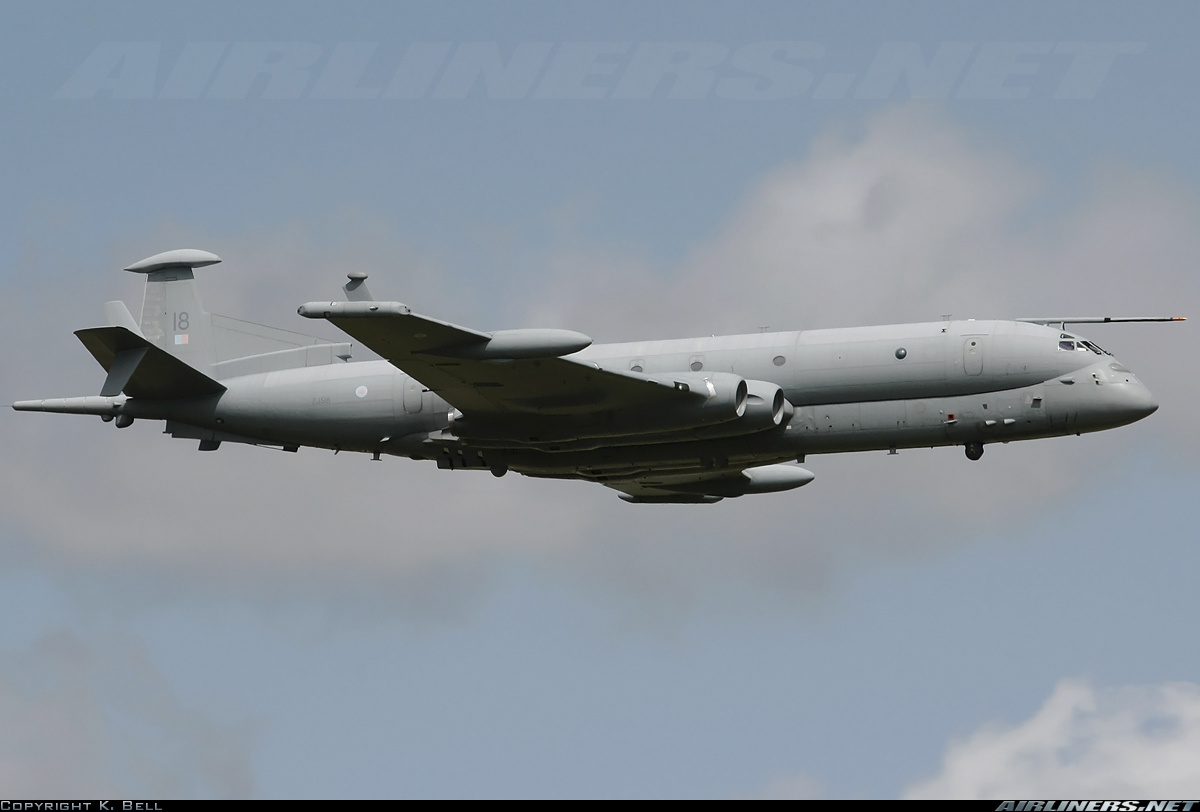

British Aerospace Nimrod




  • Origin
  • UK
  • Type
  • electronic intelligence platform
  • Max Speed
  • not published
  • Max Range
  • not published
  • Dimensions
  • span 35.08 m / 115 ft 1 in length 36.50 m / 119 ft 9 in height 9.08 m / 29 ft 9.5 in
  • Weight
  • not disclosed
  • Powerplant
  • four 5507-kg (12,140-lb) dry thrust Rolls-Royce Spey Mk 250 or 251 turbofans
  • Armament
  • none
  • Operators:
  • United Kingdom


Scorpion

THINK TANK
Joined
Nov 27, 2014
Messages
2,758
Reaction score
1,898
Country
Saudi Arabia
Location
Saudi Arabia
Dassault Bregut Atlantique






  • Origin
  • France
  • Type
  • maritime patrol and ASW aircraft
  • Max Speed
  • 355 kt / 409 mph
  • Max Range
  • 7970 km / 4,950 miles
  • Dimensions
  • span 36.30 m / 119 ft l in
  • length 31.75 m / 104 ft 2 in)
  • height 11.33 m / 37 ft 2 in
  • Weight
  • empty 24,000 kg / 52,900 lb
  • max. take-off 43,500 kg /
  • 95,900 lb
  • Powerplant
  • two 4638-ekW (6,220-ehp) Rolls-Royce Tyne Mk 21 turboprops
  • Armament
  • internal bay carries up to nine torpedoes at various kinds, or depth charges and other stores; four underwing pylons carry rockets or ASMs
  • Operators:
  • France, Germany, Italy, Pakistan


Scorpion

THINK TANK
Joined
Nov 27, 2014
Messages
2,758
Reaction score
1,898
Country
Saudi Arabia
Location
Saudi Arabia
Dassault Falcon 20 / 200






  • Origin
  • France
  • Type
  • maritime surveillance and multi-role attack/EW aircraft
  • Max Speed
  • 870 km/h / 541 mph
  • Max Range
  • 4490 km / 2,790 miles
  • Dimensions
  • span 16.30 m (53 ft 6 in) length 17.15 m (56 ft 3 in) height 5.32 m (17 ft 5 in)
  • Weight
  • empty 8700 kg (19,180 Ib); maximum take-off 15200 kg (33,510 Ib)
  • Powerplant
  • two 2468-kg (5,440-lb) dry thrust Garrett ATF3-6A-3C turbofans
  • Armament
  • provision for AM.39 Exocet anti-ship missiles, cannon or machine-gun pods, rocket-launcher pods, bombs, ECM equipment and other stores carried on four underwing hardpoints
  • Operators:
  • Norway, United States


Scorpion

THINK TANK
Joined
Nov 27, 2014
Messages
2,758
Reaction score
1,898
Country
Saudi Arabia
Location
Saudi Arabia
EMBRAER EMB-110 / 111 Bandeirante


  • Origin
  • Brazil
  • Type
  • seven-seat maritime surveillance and patrol aircraft
  • Max Speed
  • 360 km/h / 223 mph
  • Max Range
  • 2945 km / 1,830 miles
  • Dimensions
  • span 15.95 m (52 ft 4 in)
  • length 14.91 m (48ft 11 in)
  • height 4.91 m (16ft 1.7 in)
  • Weight
  • empty 3900 kg (8,598 Ib); maximum take-off 7000 kg (15,432 Ib)
  • Powerplant
  • two 559-kW (750-shp) Pratt & Whitney Canada PT6A-34 turboprops
  • Armament
  • 2.75-in (70-mm) FFAR or 5-in (127-mm) HVAR rockets, smoke grenades, flares, chaff etc.
  • Operators:
  • Brazil (EMB-111), Uruguay (EMB-110)


Scorpion

THINK TANK
Joined
Nov 27, 2014
Messages
2,758
Reaction score
1,898
Country
Saudi Arabia
Location
Saudi Arabia
Fokker F-27 Enforcer



  • Origin
  • Netherlands
  • Type
  • armed maritime multi-role patrol aircraft
  • Max Speed
  • 463 km/h / 287 mph
  • Max Range
  • 5000 km / 3,107 miles
  • Dimensions
  • span 29.00 m (95 ft 1.7 in) length 23.56 m (77 ft 3.6 in) height 8.70 m (28 ft 6.5 in)
  • Weight
  • empty 13725 kg (30,258 Ib); normal take-off 20410 kg (45,000 Ib); maximum take-off 22680 kg (50,000 Ib)
  • Powerplant
  • two 1738-ekW (2,330-eshp) Rolls-Royce Dart Mk 552 turboprops
  • Armament
  • provision for up to 3930 kg (8,664 Ib) of disposable stores carried on two fuselage pylons and six underwing hardpoints; typical weapons include up to four AS torpedoes, or AM.39 Exocet, Sea Eagle, Harpoon, Maverick or Sea Skua anti-ship missiles
  • Operators:
  • Angola, Finland, Iceland, Netherlands, Philippines, Singapore, Spain, Thailand
The F-27 is Active but not in production. I believe the F-50 version is the new replacement.


Scorpion

THINK TANK
Joined
Nov 27, 2014
Messages
2,758
Reaction score
1,898
Country
Saudi Arabia
Location
Saudi Arabia
Grumman E-2



New upgrade

E-2D Hawkeye.jpg


  • Origin
  • USA
  • Type
  • carrierborne and land-based airborne early warning and control aircraft
  • Max Speed
  • 325 kt / 374 mph
  • Max Range
  • 2,583 km / 1,605 miles
  • Dimensions
  • span 24.56 m / 80 ft 7 in
  • length 17,54 m / 57 ft 6.75 in
  • height 5.58 m / 18 ft 3.75 in
  • Weight
  • empty 17,265 kg / 38,063 Ib
  • maximum take-off 23,556 kg / 51,933 lb
  • Powerplant
  • two 3661-ekW (4,910-ehp) Allison T56-A-425 turboprops
  • Armament
  • none
  • Operators:
  • Egypt, France, Israel, Japan, Mexico, Singapore, Taiwan, United States


Rakan.SA

MEMBER
Joined
Apr 7, 2015
Messages
551
Reaction score
583
Country
Saudi Arabia
Location
Saudi Arabia
is there anyone in this forum who knows about EW ?


Scorpion

THINK TANK
Joined
Nov 27, 2014
Messages
2,758
Reaction score
1,898
Country
Saudi Arabia
Location
Saudi Arabia
Grumman EA-6 Prowler



  • Origin
  • USA
  • Type
  • electronic countermeasures platform
  • Max Speed
  • 530 kt / 610 mph
  • Max Range
  • 1,769 km / 1,099 miles
  • Dimensions
  • span 16.15 m / 53 ft 0 in
  • length 18.24 m / 59ft 10 in
  • height 4.95 m / 16 ft 3 in
  • Weight
  • empty 14,588 kg / 32,162 lb

  • maximum take-off 29,484 kg / 65,000 lb
  • Powerplant
  • two 5080-kg (11,200-lb) dry thrust Pratt & Whitney J52- P-408 turbojets
  • Armament
  • initially none but retrofitted with capability for the underwing carriage of four or six AGM-88 HARM anti-radar missiles on the ICAP-2 and ADVCAP aircraft respectively
  • Operators:
  • United States


Scorpion

THINK TANK
Joined
Nov 27, 2014
Messages
2,758
Reaction score
1,898
Country
Saudi Arabia
Location
Saudi Arabia
This one here is very old, not in production anymore but still active for limited service only.



Grumman Mohawk OV-1



  • Origin
  • USA
  • Type
  • tactical reconnaissance aircraft
  • Max Speed
  • 491 km/h / 305 mph
  • Max Range
  • 1738 km / 1,080 miles
  • Dimensions
  • span 14.63 m (48 ft 0 in)
  • length 13.69 m (44 ft 11 in)
  • height 3.86 m (12 ft 8 in)
  • Weight
  • empty 5333 kg (11,757 Ib); maximum take-off 8085 kg (17,826 Ib) with IR or 8164 kg (18,000 lb)with SLAR
  • Powerplant
  • two 1044-kW (1,400-shp) Lycoming T53-L-701 turboprops
  • Armament
  • generally none
  • Operators:
  • Argentina, Israel
