Development
Of course, the K1A1 already showed the way and was superior to any North Korean tank at the time. Development started in 1994. Rotem’s very first designs in the late 1990s tried an unmanned turret, and the Rheinmetall’s experimental 140 mm smoothbore gun was also for a time (until the company reversed t a more conventional 120mm gun) envisioned. With the XK2 program, engineers took a compromise eventually, with a 120 mm/L55 with a reconfigurable cradle able to mount the 140mm if need be.

By 2006 already, the K2 production model was ready for testings. Total expenditures for the project arose to US$230 million. Production started in 2007, on March, 2, at Changwon in South Korea. A local powerpack was designed, based on the German MTU-890, 1,500 horsepower strong, but it showed a considerable amount of teething problems that delayed operational service acceptance for two years. There was a new bump in 2011, when the Defense Acquisition Program Administration had to admit that the engine would be replaced by the original MTU-890 instead, at least for the first 100, delaying operational introduction until March 2014.

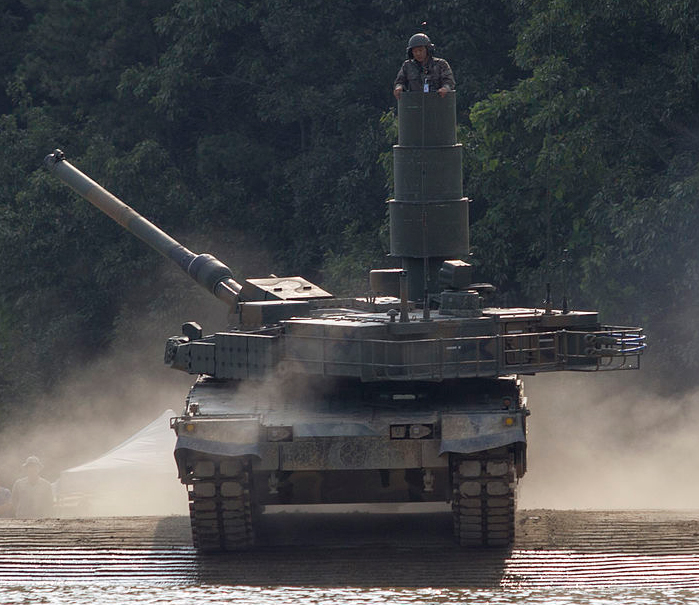

The K2 crossing a trial pool after a preparation, showing its snorkel mast.

Improvement from the K1A1
Both the K2 and K1A1 guns were of the same caliber, but the former displayed a much longer barrel (1.3 m or 4.3 ft) for a greater muzzle velocity of 1400 m/sec in return, enabling much better levels of accuracy and penetration values. In addition mobility was improved as it could ford 4m of water without a short preparation (see later). Posture control function (linked to the hydro-pneumatic suspensions) was also a new feature allowing to raise or lower the tank silhouette, while the laser warning system directly pointed the turret towards the source of illumination, saving precious seconds.

K2 price tag question
All in all, it was indeed an impressive new Main Battle Tank, which revealed itself, after all these years of development and teething problems of its ambitious domestic powerpack, also one of the top costiest tank ever, at US$8.8 million apiece. To give a comparison, the Chinese ZTZ-99 is worth $2.6 million, and the Abrams is approximately $8.5 million apiece. The Leclerc seems to still top the list at $12.6 million (even $23 million when accumulating all past developments). The Japanese Type 10 is the second costliest at $9.4 million. It is difficult to estimate the price of the comparable, opposite North Korean Popkung Ho, would be in the range of $2 million. It’s quite difficult to assert.


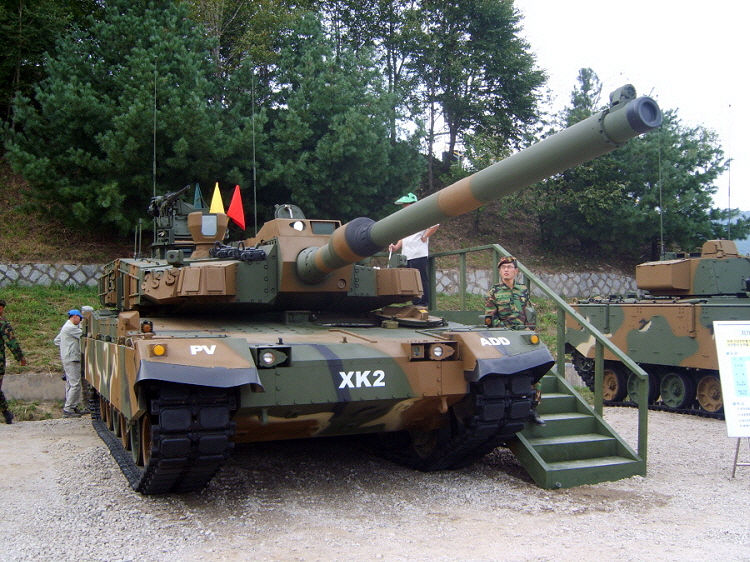

XK2 prototype.

Protection
As most modern MBTs the hull is a multi-layered one, with a welded hardened steel core, covered by modules of composite armour, details of which are of course duly classified. The latter comprises K2 PIP Non-Explosive Reactive Armor and ERA blocks, in particular to the turret’s front. Tests showed the frontal armour was impervious to the 120 mm APFSDS round fired from a L55 gun. There is also an active layer with a soft-kill anti-missile system, that would be completed with the K2 PIP by a hard-kill anti-missile defense system that can track and target the incoming missiles.

To complete the active protection, a millimeter band radar system is installed, providing Missile Approach Warning System (MAWS). Sensors transmit data in real time to the computer that can triangulate incoming projectiles, and enable automatic release of Visual and Infrared Screening Smoke grenades as well as warning the crew. Of course collective NBC with overpressure is fitted as a standard (completed by atmospheric sensors), as well as automatic fire suppression systems in the crew and engine compartments.

The Korean Active Protection System (KAPS) locally developed is a hard-kill active protection system, using a three-dimensional detection, tracking radar and thermal imager to detect incoming threats. Range is 150 meters around the tank, while a defensive rocket can destroy incoming targets at 10–15 meters away. KAPS deals with rocket-propelled grenades and anti-tank guided missiles (ATGMs). Unit price is ₩670 million ($600,000).

Firepower
The core of the K2 lays into its locally developed Hyundae WIA smoothbore 120mm /55 caliber complemented by an autoloader similar to the one used on the leclerc, reducing the crew and allowing for much greater rate of fire, of 10 round per minute. To serve it there was a 16-shell read-round ammunition magazine, with a total of 40 carried between the hull and turret. Secondary armament comprised a roof-mounted 12.7 mm (0.5 in, cal 50) K-6 heavy machine gun (3,200 rounds) and a 7.62 mm coaxial light machine gun (12,000 rounds).

The main ammunitions are the APFSDS (improved tungsten core with a special heat treatment) kinetic energy penetrator, seconded for lightly armoured targets of soft targets by a multi-purpose HEAT chemical energy round (similar to M830A1 HEAT MP-T). Importantly there is also a specially developed Korean Smart Top-Attack Munition (KSTAM), sort of fire-and-forget semi-autonomous ammunition that operates at 2–8 km (1.2–5.0 mi), launched in a mortar-type high trajectory.

Upon arrival to the target, the on-board millimeter band radar is enabled after the opening of a parachute, time for the Infrared and radiometer sensors to seek targets and when spotted, an explosively formed penetrator is launched from a top-down position, perfect to target these generally less well protected parts of the enemy tanks. Choice of the target can also be commanded by the gunner from a remote link.

So serve the armament, the FCS comprises an Extremely High Frequency radar system, coupled with a laser rangefinder and crosswind sensor. The system can track and lock on several targets simultaneously at 9.8 km (6.1 mi) using a thermographic camera. There is a state of the at for the gun stabilizer and trigger-delay mechanism to fire accurately on the move. The trigger-delay system allows the beam to be re-aligned after encountering a very uneven terrain. Also locally designed are the Korean Gunner’s Primary Sight (KGPS) and Korean Commander’s Panoramic Sight (KCPS).

They are derived from those used in the K1A1 tanks but upgraded. The system allows a hunter-killer mode and tank commander override. Redondant systems, as stated by the manufacturers, should allow in an extreme situation the tank to be manned by the driver only, the gun being able to be automatically pointed and fired through the computer’s decisions with data provided by the sensors about the best opportunity targets, in turn.In addition the K2 operates the C4I (Command, Control, Communications, Computers, and Intelligence) system, a battlefield awareness system, with modern touch-screen consoles and digital displays (similar to the US Inter-Vehicular Information System), allowing it to share data with other units, on the ground or the air. There is also GPS (Global Positioning Satellite) navigation uplink. An IFF/SIF (Identification Friend or Foe/Selective Identification Feature) is also part of the package, launching a 38 GHz beam from the mantlet to the targeted vehicle to avoid mis identifications and friendly fires.


Mobility
Engine
The tight fit of the engine compartment (the main diesel is mounted transversally) allowed to engineers to cram into a Samsung Techwin gas-turbine engine to boost speed for short runs. It develops 100 horsepower (75 kW) and is also used an an auxiliary unit for on-board systems and some defense systems when the main diesel is shut. This turbine also helps for minimal thermal and acoustic signatures, and to save fuel. The power unit is a 4-cycle, 12-cylinder water-cooled diesel which develops 1,500 hp (1,100 kW), originally built by Hyundai (second serie planned in 2014+), whereas the first batch of 100 was powered by the German MTU-80 diesel.

Performances
This powerpack gave the Korean MBT a top speed of up to 70 km/h on flat, up to 52 km/h off-road and 0 to 32 km/h acceleration in 8 seconds. As shown in field tests, it was shown could climb 60° slopes, and 1.8 m vertical obstacles. The K2 can ford up to 4.1m of water with a short preparation (20-30 min) a real improvement over the previous two hours or so, and to ford 2 meters deep on the previous K1. The snorkel system doubled as a conning tower for the tank commander. One of the solution was to allow to fill the hull with 500 gallons of water to have a balance pressure and avoid excessive buoyancy from the inside. When resurfacing it was combat-ready.

Suspensions
The other major advantage of the K2 over previous designs is its advanced suspensions system called the In-arm Suspension Unit (ISU), which allowed to manage every bogie and its control on the ground. Hydro-pneumatic, it allowed the whole hull to “sit”, “stand”, “kneel” or “lean” on each side, giving for example the perfect hull-down position when awaiting the enemy, or more elevation (24°) when firing on high-up targets, including low-flying aircraft. When running at high speed, “standing” the suspensions made for a higher ground height, and better mobility by amplitude over rough terrain, as each bogie could be adjusted in real time on the fly to deal with vibrations and cushions the chassis.

In service
The K2 entered service in 2013 (early, preserie of 25) and 2014 (official) as stated with a German MTU engine instead of the domestic powerpack for the first batch. As for today (according to Military-Factory), 241 K2s has been delivered by the consortium, including Hyundai ROTEM/Agency Samsung, Doosan, World Industries Ace Corporation. Total planned its about 680 for the late 2020s/early 2030s, including the upgraded variant, the K2 PIP.
If so, South Korea would field quite an impressive array of modern tanks to replace its age-old M48/M60K, added to the already existing 1,500 modernized PIP K1 and K1A1 for a grand total of 2180 modern MBTs, to compare for example to 400 Leclercs in service with the French Army. According to 206 were deployed, and 100 more are requested by the Army as of may 2016 to be deployed on the border with North Korea.

K2 PIP
This upgrade is intended for the near future (2016-2020) to improve the early batches.
It comprises:
-Upgrading of the the Semi-Active hydropneumatic suspension Unit, to an fully Active Unit
-High-resolution, real time terrain-scanning system, to improve the suspensions behaviour on rough terrain, essentially “planning ahead” the nearby terrain up to 50 meters away, calculating the optimal position of the bogie.
-Integration of a hard-kill anti-missile KAPS system.
-Addition of NERA modules (Non-Explosive Reactive Armor).
-Ongoing tests on a 120 mm/L55 electrothermal-chemical gun.

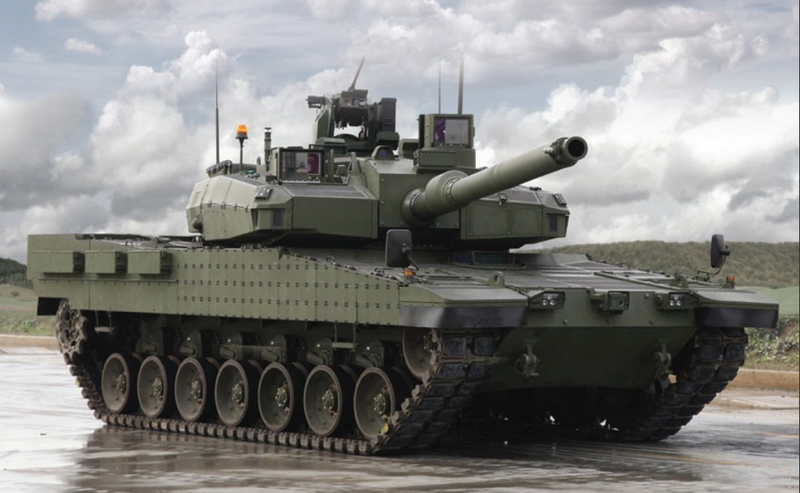

Exports: The Altay
Turkey “adopted” the K2: Indeed after a competition held against the Leclerc and Leopard 2, the K2 won and in June 2007, negotiations ened with an arms deal contract (₩500 billion/US$540 million with Otokar) for licensing the K2 design of in Turkey. On July 30, 2008, a further $540 secured technological transfer and design assistance. The local design is known as the MİTÜP Altay, the first Turkish local MBT, final development phase today. Many alteration has been made to the original design, but its still shares many subsystems with the K2. In 2011 however, the contract coverage was shortened due to development delays and costs. In addition, late September 2013, the Peruvian Army also tested the K2.


The Altay is intended to enter in service in 2018.

Links/crossed sources
The K2 on wikipedia
On defense-update
On thaimilitaryandasianregion
Additional planning informations – tanknutdave.com
On army-guide.com
Also crossings with military-today.com, army-technology.com, militaryfactory.com.

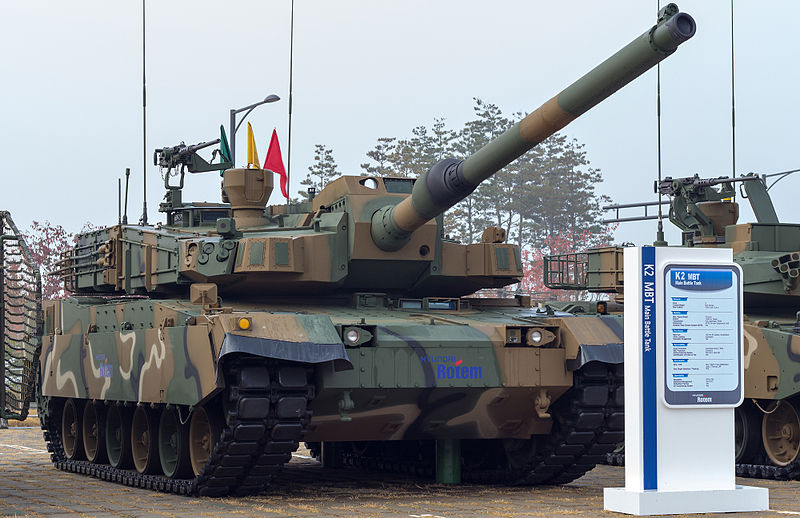

Rotem K2 specifications
Dimensions10.00 m x 3.17 x 2.20 m (32’81” x 10’17” x 7’22” ft)
Total weight, battle ready55 tonnes (60 short tons, 121,254 lb)
Crew3 (driver, gunner, commander)
Propulsion12-cyl wc MTU MB-883 KA500 diesel, 1,500 hp + turbine
SuspensionHydropneumatic suspensions
Speed (road)70 km/h (43 mph)
Range450 km (220 mi)
Armament120 mm sb main gun, 12.7 mm K6, 7.62 mm LMGArmorCombination passive/active protection, ERA/NERA, See notes.
Total production241+ as of 2016


Khafee

Administrator
Staff member
Joined
Nov 17, 2017
Messages
12,324
Reactions
24,465 1,293 0
South Korea’s K2 tank to run on German transmission
By: Jeff Jeong
14.02.2018

SEOUL — South Korea’s K2 main battle tank is to be equipped with a German transmission system, a part of the tank’s powerpack that includes a locally-developed engine.

The Defense Acquisition Program Administration (DAPA) announced Feb. 7 that its top decision-making body, presided over by Defense Minister Song Young-moo, made a decision to adopt the German RENK transmission system for the production of a second batch of 106 K2 tanks.

The second-batch production was originally started in 2014 but has been postponed due to repeated failures in evaluating reliability of the local transmission system built by S&T Dynamics.

“The field deployment of K2 tanks has long been delayed due to defects in the domestically-built transmission system,” the arms agency said in a press release. “We’ve made a conclusion that the second batch of K2s will be equipped with a powerpack consisting of a local engine plus a foreign transmission.”

Hanwha Defense Systems, formerly known as Doosan DST, is in charge of development of a 1,500hp engine for the K2 Black Panther, co-developed by the state-funded Agency for Defense Development and Hyundai-Rotem.

The second-batch of K2s is scheduled to be deployed with the Army units between 2019 and 2020, according to the DAPA.

The first batch of 100 K2s was equipped with the German MTU 883 diesel engine and RENK transmission system. In December 2014, Hyundai Rotem signed an $820 million contract to supply the additional K2 MBTs to the Army. But the plan hit a snag as S&T Dynamics’ automatic transmission failed in the durability tests six times.

Under the defense production standards, a tank transmission system is required to run without defects for 320 hours.

“Unfortunately S&T’s transmission system failed to prove its reliability and durability under the rules,” a Hyundai Rotem official said, requesting to remain anonymous. “With the hybrid powerpack of South Korea engine and German transmission, the stalled production of K2s is to resume to replace the Army’s aging inventories of US-made M47 Patton tanks and older versions of the K1 MBT, which have been in service since the 1980s.”

He added an additional contract for the production of the third batch of about 110 K2s is to follow in the coming years.

The Black Panther features advanced weapons systems. It is armed with a 120mm/L55 smoothbore gun indigenously developed by Hyundai Wia. It is also equipped with a state-of the-art fire-control system capable of acquiring and tracking specific targets up to a range of 9.8 km using a thermographic camera.

The tank can travel at speeds of up to 70 km/h on road surfaces and maintain speeds of up to 52 km/h in off-road conditions. It can also climb 60-degree slopes and vertical obstacles 1.8 meters in height.

In 2008, Hyndai Rotem signed a $540 million contract with Turkey’s Otokar for technological transfer and design assistance of the K2. The technology was incorporated to Turkey’s main battle tank, dubbed Altay.

https://www.defensenews.com/global/...koreas-k2-tank-to-run-on-german-transmission/


Signalian

MEMBER
Joined
Nov 19, 2017
Messages
340
Reactions
1,194 65 0
Country
Pakistan
Location
Australia
Altay has been developed from K-2.

weight of K-2 : 55 T
weight of Altay: 65 T

Is the 10 T difference because of more armor on Altay?
