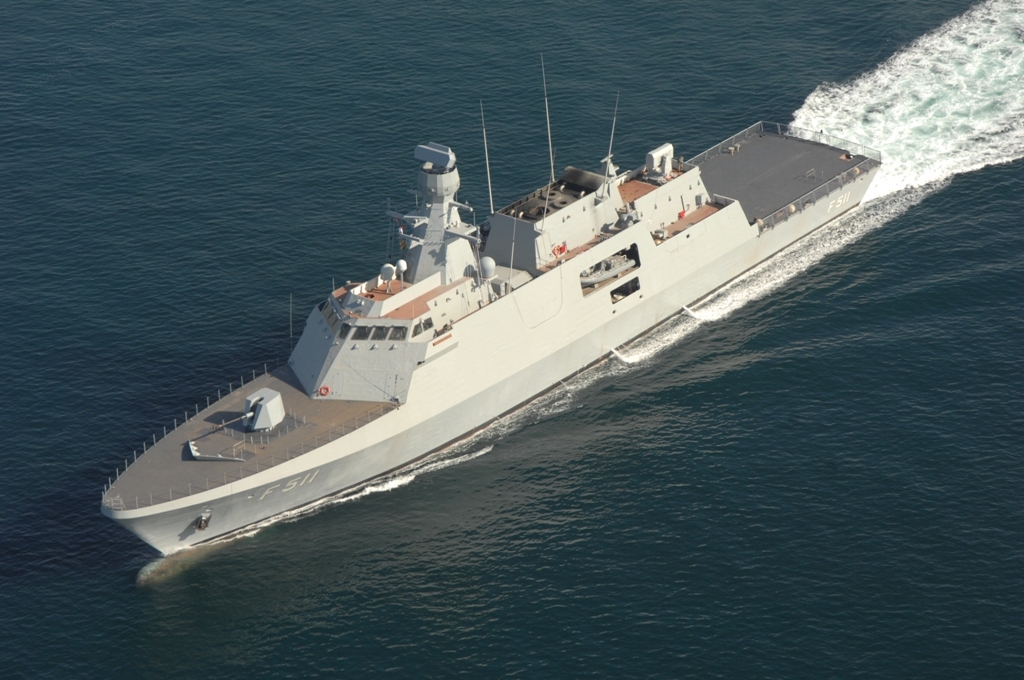

MILGEM class corvette





Characteristics:

Displacement: 2300 tons, full load
Dimensions: 99 x 14.4 x 3.75 metres
Speed, Range: 15 knots economical, 29+ knots maximum, 3500 miles at 15 knots.
Crew: 93

Weapons:
Guns: 1 x 76mm, 2 x 12,7mm
Missiles:
8 x Harpoon SSM;
Mk-144 Guided Missile Launcher: 21 x RAM SAM
Torpedoes: 2 x 324 mm Mk 32 triple launcher for Mk 46 Mod 5; anti-submarine torpedoes.
Helicopters: 1 x S-70-B2 Seahawk

Sensors:
Radars: SMART-S Mk2 3D air/surface search; Sting fire control; ALPER navigation
Sonars: Search/attack
Other: ASELFLIR 300D, ARES-2N ESM system

Comments:
MİLGEM is the first indigenous ship building project staged in Turkey. Turkish Navy is responsible for the initial design and for the determining technical specification of the weapon, sensor, machinery and other sub systems. UDI is responsible of purchasing these systems.

The missions of MİLGEM class are showing the flag, search/rescue, patrol, observation and anti submarine warfare.

The sonar of MİLGEM class is being produced in Turkey. The 12,7mm machine guns on the aft are mounted of ASELSAN build STAMP (Stabilized Machine Gun Platform) and they are controlled remotely.

The keel of the first ships TCG Heybeliada was laid on 26th July 2005 in Istanbul Naval Ship Yard and she was launched on 27 September 2008. The sea trials for the first ship started in October 2010.

The second ship, TCG Büyükada was launched on 27th September 2011 and on the same day TCGHeybeliada was commissioned. On 27 September 2013, TCG Büyükada was commissioned into Turkish Navy and the keel for the third ship F-513 TCG Burgazada was laid.

#3
Ratings
1 249 0
Joined
Apr 4, 2015
Messages
354
Ratings
250
Country
Turkey
Location
Netherlands

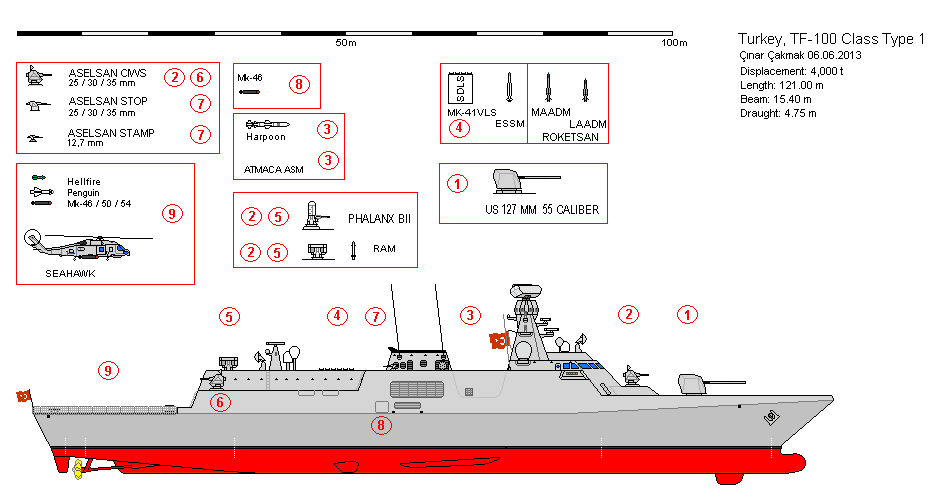

TF-100 Class Type 1

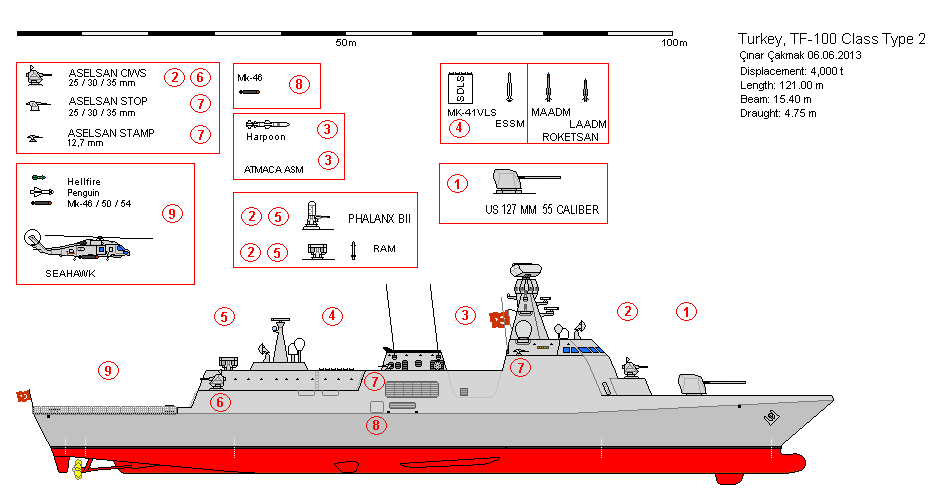

TF-100 Class Type 2


#4
Ratings
1 249 0
Joined
Apr 4, 2015
Messages
354
Ratings
250
Country
Turkey
Location
Netherlands

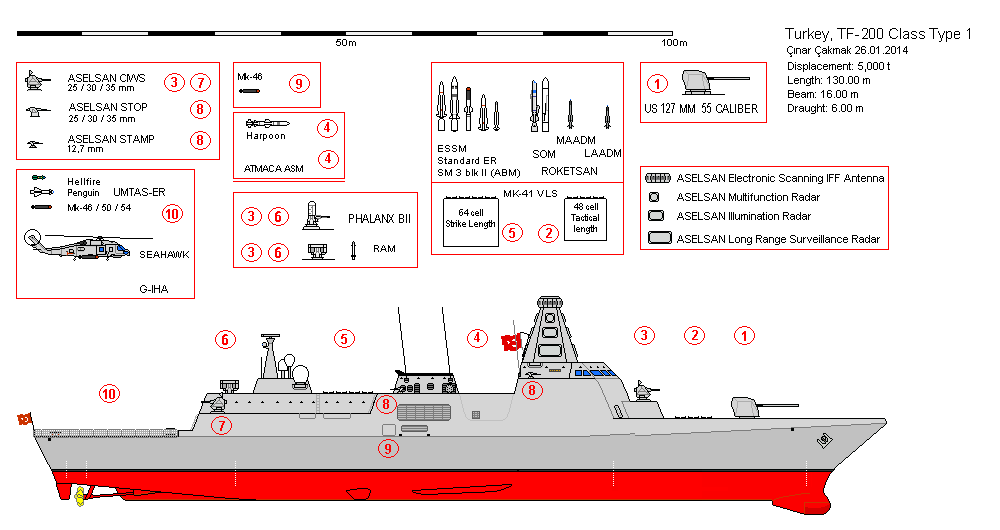

TF-200 Class Type 1

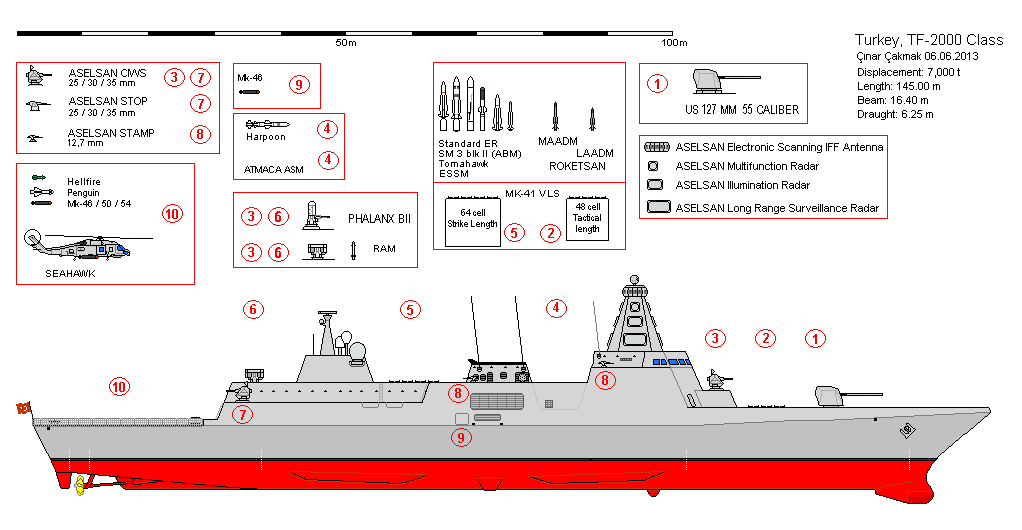

TF-2000 Class


#6

Atalay

THINK TANK
Ratings
9 285 0
Joined
Dec 5, 2017
Messages
340
Ratings
294
Country
Turkey
Location
Germany
Turkish STM offered Colombian Navy CF3500 frigate for coproduction with Colombian Cotecmar Yard.

STM is competing with French DCNS Belharra and Swedish SAAB - BMT Venator-110 frigates.

#8

Atalay

THINK TANK
Ratings
9 285 0
Joined
Dec 5, 2017
Messages
340
Ratings
294
Country
Turkey
Location
Germany
Turkish Naval Industry by 2013 (Special thanks to Gazi Sabri Ünal)

* MİLGEM
-- Milgem Ada Sınıfı Korvet
-- 80 Sınıfı Botlar / SG 80
-- Türk Tipi Botlar / SG TTB

* DELTA MARİNE + STM
-- Delta Marine + STM / LF-2400 - Light Frigate
-- Delta Marine + STM / C-1200 - Corvette
-- Delta Marine + STM / LCT-F
-- Delta Marine + STM / LCT-H
-- Delta Marine + STM / LST-I
-- Delta Marine + STM / LPD - Levent Class
-- Delta Marine + STM / LPD 140 - Levent Class
-- Delta Marine + STM / RTR-1 - Offshore Rescue / Towing Ship
-- Delta Marine + STM / RTR-128 - Offshore Rescue / Towing Ship
-- Delta Marine + STM / MOSHIP-TR1 - Submarine Deep Rescue Ship
-- Delta Marine + STM / Fleet Tanker AOR-22
-- Delta Marine + STM / Offshore Patrol and Support Vessel (OPSV - 1500)
-- Delta Marine + STM / Naval Dive Training & Support Boat (Yunus Class)
-- Delta Marine + STM / Naval Training Ship (MBH1773)
-- Delta Marine + STM / Naval Training Ship (MBH1774)

* RMK MARİNE
-- RMK Marine Dost Sınıfı Sahil Güvenlik AK/SAR Gemileri
-- RMK Marine HAVUZLU ÇIKARMA GEMİSİ PROJESİ
-- RMK Marine KORVET PROJESİ
-- RMK Marine ÇOK MAKSATLI SAHİL GÜVENLİK GEMİSİ PROJESİ
-- RMK Marine SÜRATLİ TAARRUZ BOTU PROJESİ

* DAERSAN
-- Daersan YTKB Yeni Tip Karakol Botu

* YONCA-ONUK
-- Onuk MRTP15 (Sahil Güvenlik)
-- Onuk MRTP16
-- Onuk MRTP19 (Sahil Güvenlik)
-- Onuk MRTP20
-- Onuk MRTP22
-- Onuk MRTP24
-- Onuk MRTP29 (Sahil Güvenlik)
-- Onuk MRTP33 (Sahil Güvenlik)
-- Onuk MRTP34
-- Onuk MRTP42
-- Onuk MRTP44

* ARES SHİPYARD
-- Ares 150 SOF - FAMB - HERCULES
-- Ares 140 FAMB - HERCULES
-- Ares 125 FAMB - HERCULES
-- Ares 110 FAMB - HERCULES - Offshore
-- Ares 75 HERCULES
-- Ares 53 Ghost Patrol - Fast Patrol
-- Ares 42 Hector
-- Ares 39 Fast Patrol

-- Ares 70 GHOST PATROL
-- Ares 48 FAST ASSAULT
-- Ares 44 CPB-N
-- Ares 38 SHORE PATROL

-- Ares 53 Ambulance
-- Ares 75 Ambulance
-- Ares 42 LC
-- Ares 40 MRIC

-- Ares KND 10SF RIB
-- Ares KND 21 SAR
-- Ares RANGER 2000 FIFI
-- Ares RANGER 4000 FIFI

* İSTANBUL SHİPYARD
-- SNR-15
-- SNR-17
-- SNR-24
-- SNR-42
-- SNR-60

-- SNR-MOSHIP
-- SNR-RATSHIP/KURYED
-- SNR-SISMIC

-- SNR-FRT1700
-- SNR-FRT2500
-- SNR-FRT19800

-- SNR-LCT (Landing Craft Tank)
-- SNR-LST (Landing Ship Tank)

* ADİK ANADOLU SHİPYARD
-- Adik LCT / Landing Craft Tank
-- Adik LST / Landing Ship Tank
-- Adik Past Patrol Boat / Hücumbot
-- Adik Patrol Boat / Karakol Gemisi

* DELTA MARİNE
-- Delta Marine LCT
-- Delta Marine Support Tanker
-- Delta Marine Special Force Boat
-- Delta Marine E-Class Training Ship

* Modernization

-- GENESİS - (Ship Integrated Combat Management System) / Havelsan-Aselsan?
-- Sar-35 Modernizasyon / İstanbul Shipyard

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Firma Havuzu

Tasarım:
Delta Marine: http://www.deltamarine.com.tr
Seft Design: http://www.seft.com.tr

Mühendislik:
STM: http://www.stm.com.tr

Gemi İnşa:
RMK Marine: http://www.rmkmarine.com
Daersan: http://www.dearsan.com/

Ares Shipyard: http://www.ares.com.tr
Yonca-Onuk: http://www.yonca-onuk.com

İstanbul Shipyard: http://www.istanbulshipyard.com
Adik-Anadolu Shipyard: http://www.adik.com.tr

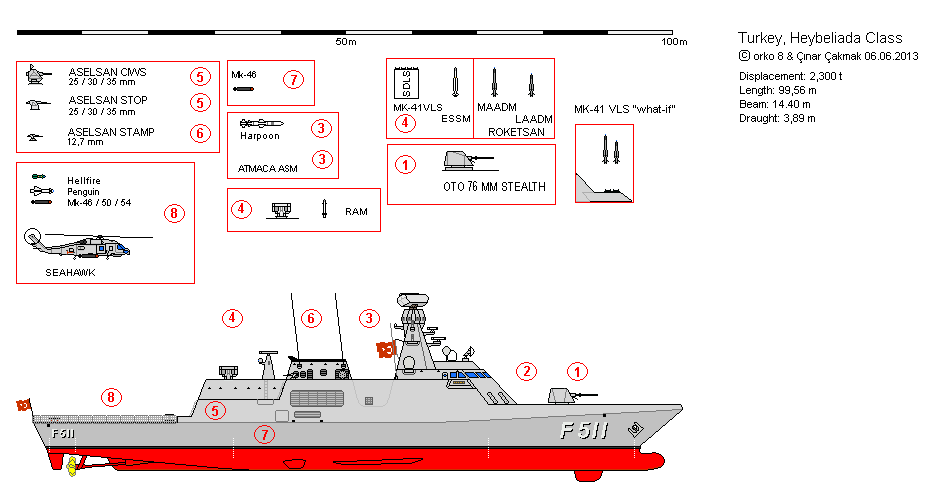

Ada Sınıfı Korvet - Milgem/Milgem Proje Ofisi (STM + Delta Marine Design)




TCG Heybeliada (F 511), TCG Büyükada (F 512), TCG Burgazada (F-513) (under construction)

Kaynak: http://www.deltamarine.com.tr/01-EN/02-Products/Ada-Class.php

Length (OA): 99,50 m / Breadth (moulded): 14,40 m: Draught (design): 3.59 m / Draught (scantling): 3,78 m / DWT: 2300 t.
Main Engine: 1 gas turbine (LM2500) & 2 diesels (MTU 16V595TE90) / Propeller | Propulsion: Controllable Pitch Propeller, 2 x Escher-Wyss /
Diesel Generator: ISBIR, 4 x 588 kW
Max Speed: 29 kn / Economical Speed: 15 kn / Endurance: 3500 nm at 15 kn
93 including aviation officers, with accommodation for up to 106 / Helicopter deck for landing and take off of helicopters up to 1 x 10 ton

Combat Management System: G-MSYS (Genesis)
Search radar: SMART-S Mk2
Weapon control: STING EO Mk2
Sonar: TBT-01 Yakamoz
Communication: SatCom, GPS, LAN, ECDIS/WECDIS, Link 11/16
Navigation: ECPINS-W, ALPER LPI
IPMS: UniMACS 3000
Others: X-Band radar, Fire Control Radar
