Ajban class 4x4 multipurpose vehicle platform, made in the U.A.E

Ajban 420- Logistic and utility 4x4 vehicle with a two man cabin and cargo bed that can be integrated with a variety of mission system loads.
Ajban_420_4x4_tactical_logistic_utility_military_vehicle_Nimr_Automotive_UAE_United_Arab_Emirates_defense_industry_640_001.jpg


Abjan 44o-Logistic and utility 4x4 vehicle with a four man cabin and cargo bed. Can be fitted with a roof mounted gun ring for self-defence to provide a versatile platform.
Ajban_440_4x4_armoured_vehicle_NIMR_Defense_and_Security_2015_exhibition_Thailand_Bangkok_640_001.jpg


Ajban 440A-Protected patrol 4x4 vehicle with a four man cabin armoured against IED, blast and ballistic threats. Fitted for mission communications and self-defence with a roof mounted weapon.


Ajban 450-Logistic and utility 4x4 vehicle with a four man station wagon cabin. Can be fitted with a roof mounted gun ring for self-defence.
Ajban_450_4x4_tactical_logistic_utility_military_vehicle_4_man_station_wagon_cabin_Nimr_Automotive_UAE_United_Arab_Emirates_defense_industry_640_001.jpg


Ajban ISV-Internal security 4x4 vehicle fitted with a hardened 10 man cabin and equipped with gun ports, roof hatches and an integrated camera-based situational awareness coupled to a fleet-to-base intercommunication system. Optionally fitted with crowd control optical and audible deterrents.

Ajban_ISV_4x4_Internal_Security_Vehicle_NIMR_Automotive_UAE_United_Arab_Emirates_defense_indusry_640_001.jpg

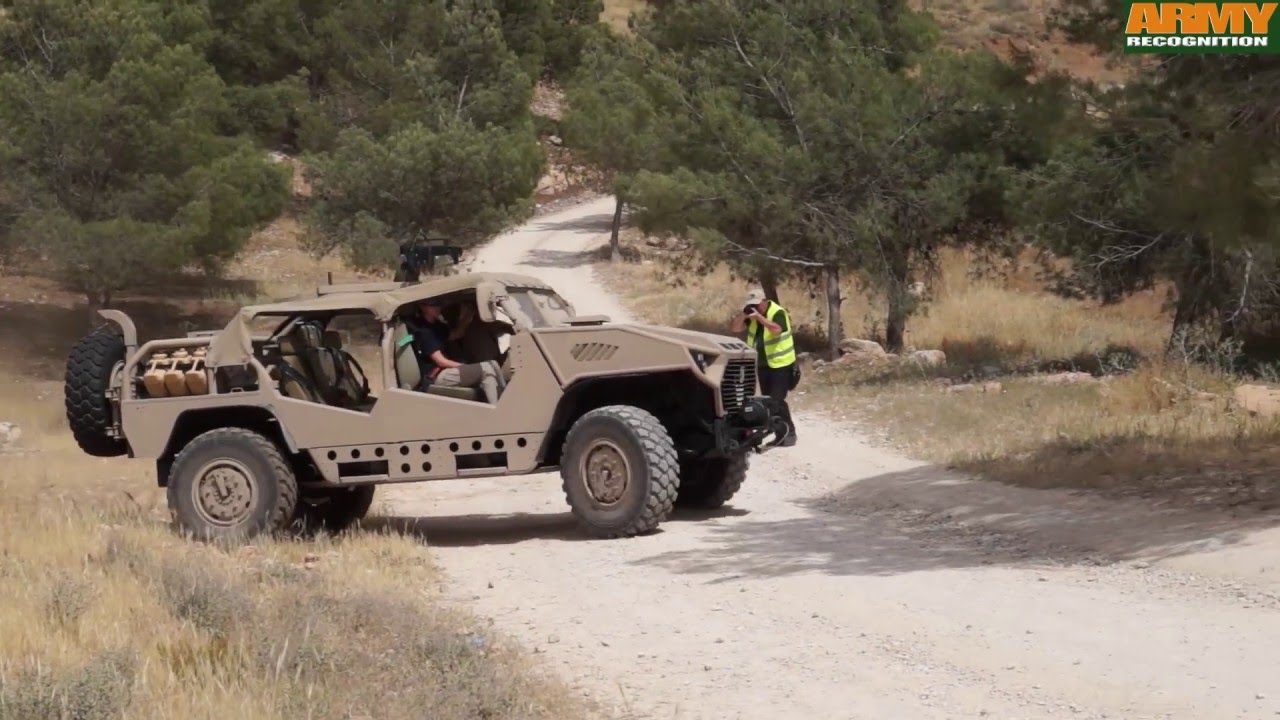

Ajban SOV- Open top 4x4 long-range reconnaissance vehicle for 4 crew with an optional 5th seat, for special operations, providing all round situational awareness and self-defense from a high mounted gun ring and gun mounts at all crew positions. Can optionally be fitted with ballistic and blast protection.
EDIC%27s_NIMR_Automotive_unveils_new_Special_Operations_Vehicle_%28AJBAN_SOV%29_at_IDEX_2015_640_001.jpg




sarvar_preus

MEMBER
Joined
Aug 2, 2016
Messages
92
Reactions
95 1 0
Country
Germany
Location
Iran
The Caracal is a series of pistols designed in the United Arab emirates, they are the first pistols to be made in the UAE.
the pistols are chambered in 9x19mm parabellum (standard issue for military use), 9x21IMI, .357 SIG, & .40S&W, versions chambered in .45ACP & in a SCHV type of ammunition (similar to the 5.7x28 FN Five-seveN round) are currently in development.
the pistol is a Glock like polymer framed designed, striker fired pistol that is fully ambidextrous, it uses double stacked magazines (Caracal F: 18 rounds for 9x19mm & 9x21mm, 16 rounds for .40S&W &.357SIG. Caracal C: 15 rounds for 9x19mm,9x21mm. 13 rounds for .40S&W & .357SIG)
Caracal F - Basic, full-size variant; original design.
Caracal C - Compact (reduced length and height) variant of the Caracal.
Caracal SC - Subcompact pistol marketed as a primary weapon for government professionals who must conceal a handgun for job related situations, or as a secondary back up pistol; no longer available as of 2015.

The pistol is in use with the armed forces of Algeria, Jordan, Bahrain, Libya & the U.A.E.

Caracal C (Compact)


Caracal F

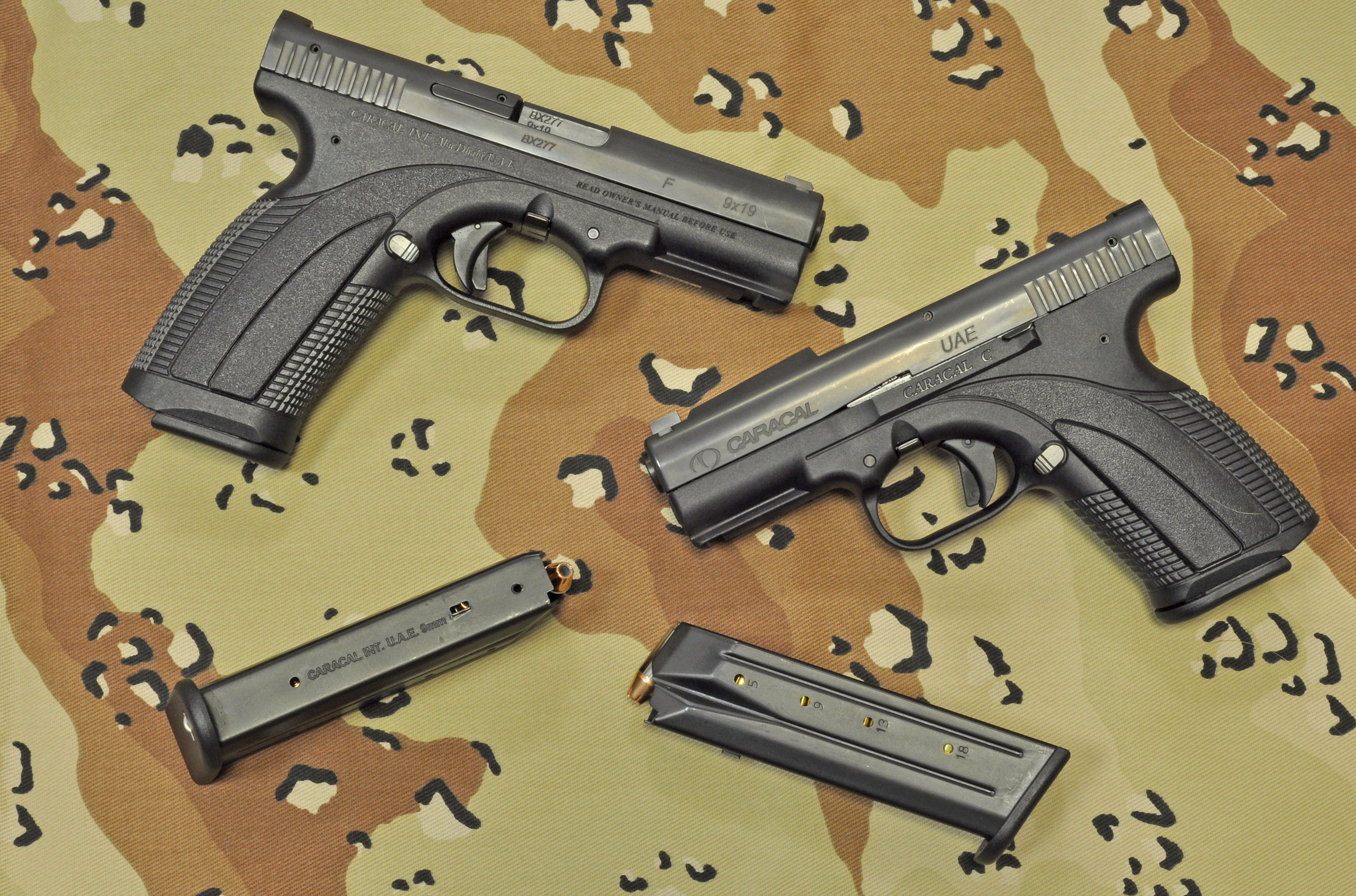

Caracal F & C together on a Desert BDU background.







I can honestly say I would want to buy and try out this pistol, alas it is nowhere to be found near me.


Khafee

Administrator
Staff member
Joined
Nov 17, 2017
Messages
12,324
Reactions
24,463 1,293 0
Patria 8X8 with 12.7mm Remote Weapon System in the front, Caiman 6X6 MRAP in the background.

Patria 8X8.jpg


Khafee

Administrator
Staff member
Joined
Nov 17, 2017
Messages
12,324
Reactions
24,463 1,293 0
UAE Baynunah Class Corvettes



P171 - Baynunah


P172 - Al Hesen


P173 - Al Dhafra



P174- Meyzad


P175 - Al Jahili
Pic not available

P176 - Al Hili


More Details:
http://www.naval-technology.com/projects/baynunah/

Specs

Displacement, full 844-915 tons

Length, O/A 71.3-72 meters

Max Beam 11.3 meters

Draft 2.90 meters

Propulsion Type Combined diesel and diesel CODAD Engines 4 x MTU 12V595 TE90 diesel engines

Main power 4 x 4.2 MW each

Propeller(s) 3 x Kamewa Waterjets models 112S11 and 125B11

Speed, maximum 32+ knots

Speed, Cruise 15 Knots

Range 2,000 nm @ 15 knots

Stores endurance 14 days

Electronics Sentry radar: Saab Microwave Systems Sea Giraffe AMB G-band

Navigation radar: Terma A/S I band Scanter 2001 LPI radar

Optronics: Sagem EOMS NG infrared search and track

Jammers/Decoys: Saab Avitronics NLWS310 (laser warning) - Rheinmetall MASS

ESM: Elettronica Seal

Combat management system: Selex Sistemi Integrati IPN-S

Weapon control system: Selex Sistemi Integrati NA-25XM

Communications: Link 11

Weapons Systems
  • Anti-air missiles: 4x Raytheon Mk 56 dual-pack VLS (8x RIM-162C ESSM missiles) 1x Mk49 mod 3 Guided Missile Launcher (21x RAM block A1 missiles)
  • Anti-ship missiles: 8x Exocet MM40 blk III
  • Guns: 1x OTO Melara 76mm/62 (main gun) 2x Rheinmetall MLG 27 27mm

Aviation 1 x Panther

Complement 55 + 5 (including officers)


Khafee

Administrator
Staff member
Joined
Nov 17, 2017
Messages
12,324
Reactions
24,463 1,293 0
UAE ARIALAH Class - Offshore Patrol Vessels for the Coast Guard

P6701 rendering.jpg

P6701 Arialah





P6702 - Hameem




RIM-116 CIWS
P6701 Ram.jpg


The 67m Arialah multi-purpose OPVs will be capable of performing a number of roles, including maritime security, law enforcement, offshore patrol, and search and rescue. A key feature of the ships is the distinctive ‘sea axe’ hull, which offers exceptionally low resistance to enable superior seakeeping, and sustained high speeds in high sea states.

Damen has developed the sea axe bow design in partnership with the University of Delft, Royal Netherlands Navy, US Coast Guard and the Maritime Research Institute Netherlands.

According to Damen, the Arialah design combines a chined hull and deep-V bottom with the sea axe bow to all but eliminate vertical acceleration and slamming as the vessel ‘cuts’ through the waves.

CICPA has specified a comprehensive weapon, sensor and command suite, for which Thales Nederland is taking major responsibility.
As well as supplying its TACTICOS combat management system,
SMART-S Mk 2 E/F-band surveillance radar,
Mirador electro-optical (EO) system,
STIR 1.2 EO Mk 2 radar/EO fire control director,
Vigile radar-band electronic support measures (ESM) and Altesse communications ESM,
Thales is also taking overall responsibility for combat system integration.

The Arialah ships will each be armed with an OTO Melara 76/62 gun forward,
two OTO Melara MARLIN 30mm gun mountings on either beam,
and a single Raytheon Mk 49 Mod 2 11-cell Rolling Airframe Missile launcher amidships.
Rheinmetall MASS decoy launchers will be fitted for soft-kill protection.
CICPA’s Arialah vessels will be fitted with a helicopter flight deck aft.
Fast interceptor boats, together with their associated launch and recovery equipment, will be sited amidships on either beam.

http://wam.ae/en/details/1395277025652

https://www.defensenews.com/digital...-uae-patrol-ship-presents-a-striking-profile/


Khafee

Administrator
Staff member
Joined
Nov 17, 2017
Messages
12,324
Reactions
24,463 1,293 0
UAE Battle Hawk




Khafee

Administrator
Staff member
Joined
Nov 17, 2017
Messages
12,324
Reactions
24,463 1,293 0
UAE Navy Aerospatiale AS565MB Panther with Exocets


Khafee

Administrator
Staff member
Joined
Nov 17, 2017
Messages
12,324
Reactions
24,463 1,293 0
JAIS 4X4 MRAP


Khafee

Administrator
Staff member
Joined
Nov 17, 2017
Messages
12,324
Reactions
24,463 1,293 0
Jobaria Multiple Rocket Launcher







Atalay

MEMBER
Joined
Dec 5, 2017
Messages
336
Reactions
283 9 0
Country
Turkey
Location
Germany
122 mm MBRL from Roketsan

http://www.roketsan.com.tr/en/urunl.../t-122-cnra-122-mm-lik-cok-namlulu-roketatar/

122 mm MBRL T-122 is a weapon system used in artillery units which fulfills fire support missions for maneuver forces by indirect firing against high pay o targets, day and night in all weather conditions. T-122 is equipped with modern sub-systems to provide lethal indirect mass fires on the targets from 3 km to 40+ km in depth.

Main Features
  • 6 x 6 or 8 x 8 Tactical Wheeled Vehicle
  • Cradle for 122 mm Caliber 2 x 20 Steel Tube Rocket Pod or 2 x 20 Tube Sealed and Thermally Insulated Composite Pods
  • On-board Crane for Ammunition Loading
  • INS/GPS Navigation System
  • Automatic Laying System with the use of INU
  • Weapon Management System
  • Wired/Wireless– Voice/Data Communication System
  • Hydraulic Stabilization System
  • Integrated Ground Meteorology System
  • Cabin Pressurization System (Optional)
  • Power Supply and Distribution System
  • Local (Inside Driver’s Cab) or Remote Firing Capability
  • Being in ring position in less than 5 minutes
  • Ballistic Protection (Optional)
Technical Specifications
Diameter122 mmNumber of Tubes2 x 20Tube Length3 mMin. Salvo Interval20 secElevation0-55°Deflection± 110°Weight~23 tonLength9.2 mWidth2.5 mHeight3.1 mVehicle6 x 6 or 8 x 8 Wheeled Tactical TruckCradle LayingAutomatic by Fire Control System Manual Back UpCrane Capacity15 tonsStabilization4 Hydraulic JacksNavigation SystemINS/GPS
